ARTIGLIO MAGNUM

Subsoiler

ARTIGLIO MAGNUM is the model from MASCHIO subsoiler range that can go deepest, with a working depth of 70 cm, for working widths up to 4 m paired with tractors in the 190 to 400 hp range.

Power required

190 - 400 HP

Working width

2,5 - 4 m

Number of tines

5 - 9

Working depth

70 cm

High performance

The ARTIGLIO MAGNUM frame mounts 40mm-thick winged tines with tungsten carbide coated tips resulting in a clearance of 105 cm for an impressive working depth of 70 cm. The considerable working depth combined with the shear bolt safety system allow you to subsoil even the hardest and toughest soils where compaction is more deep-seated.

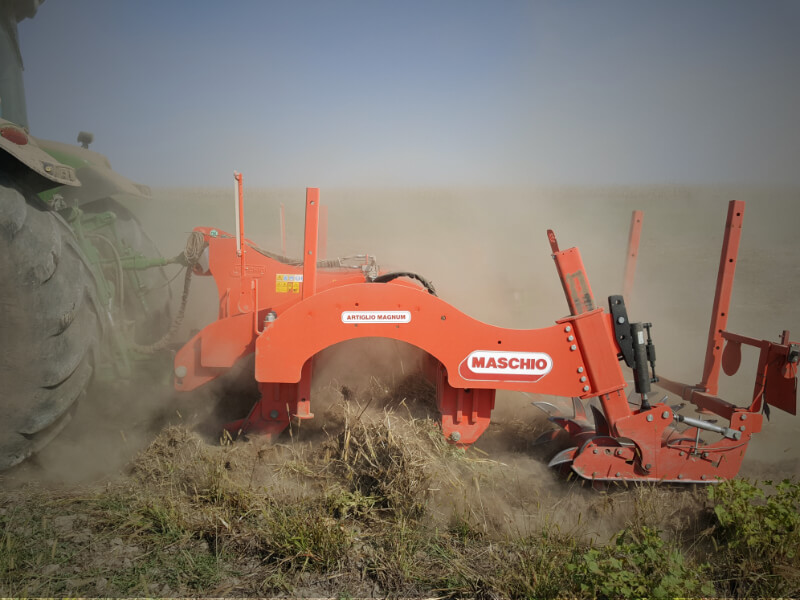

"Wave" design

The side panels, with the innovative "wave" design, and generous under-frame clearance ensure an optimal flow of soil and residue, avoiding blockages even at high working speeds and when dealing with a large amount of crop residue.

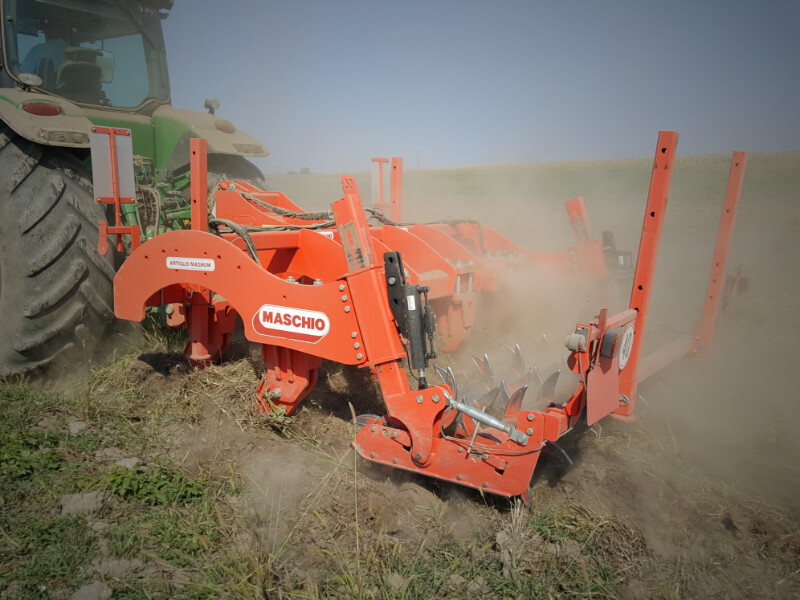

Versatile roller

The rear twin spike or spade roller is hydraulically adjusted, ensuring easy working depth control, a high level of stability even at high speeds, and breaking down of large clods into a good tilth.

Special contents

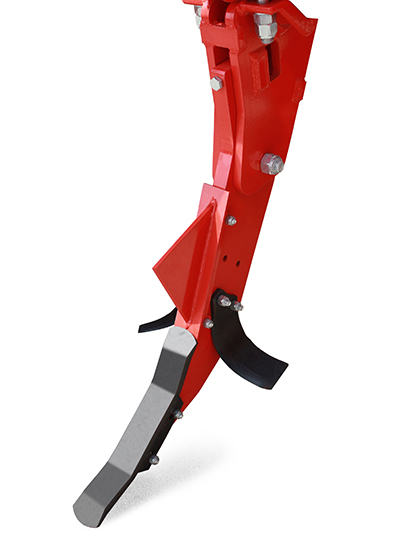

TINE TOOLS

The progressively angled tines penetrate the ground gradually, going as deep as 70 cm with low power requirements and moderate fuel consumption.

Reversible clod crushers
Quick-change reversible tungsten-coated tip
Side wings

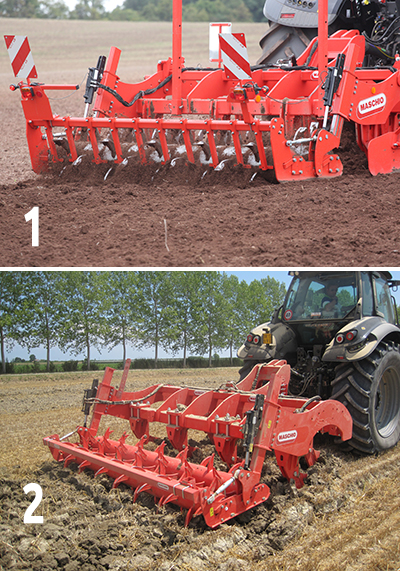

TWIN SPIKE OR SPADE ROLLER

The rollers ensure good seedbed finishing and, at the same time, are design to compact the soil loosened by the tines, limiting water evaporation from the surface layers. The new twin spade roller is available for loose soil, while the classic twin spike roller is recommended on tough ground and soil with a wealth of residue.

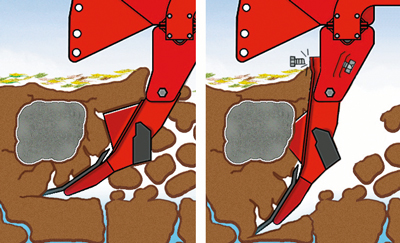

SHEAR BOLT SAFETY SYSTEM

When the maximum load is exceeded, the bolt shears, allowing the tine to rise, thus avoiding possible damage to the tine and the frame.

ARTIGLIO MAGNUM

TECHNICAL DATA

Measure	250/5	300/7	400/9
Min power HP	190 HP	240 HP	310 HP
Max power HP	280 HP	340 HP	400 HP
Working width	2,5 m	3 m	4 m
Transport width	2,55 m	3 m	4,15 m
N. of tines	5	7	9
Working depth	70 cm	70 cm	70 cm
Weight	≥ 2.274 kg	≥ 2.708 kg	≥ 3.434 kg

STANDARD DOTATION

Quick hitch reversible tip with tungsten coating 140 mm wide tungsten coated wings Reversible clod crusher Safety shear-bolt, 5 spare bolts Parking stands Light and clearance tables kit for 300, 400 versions
