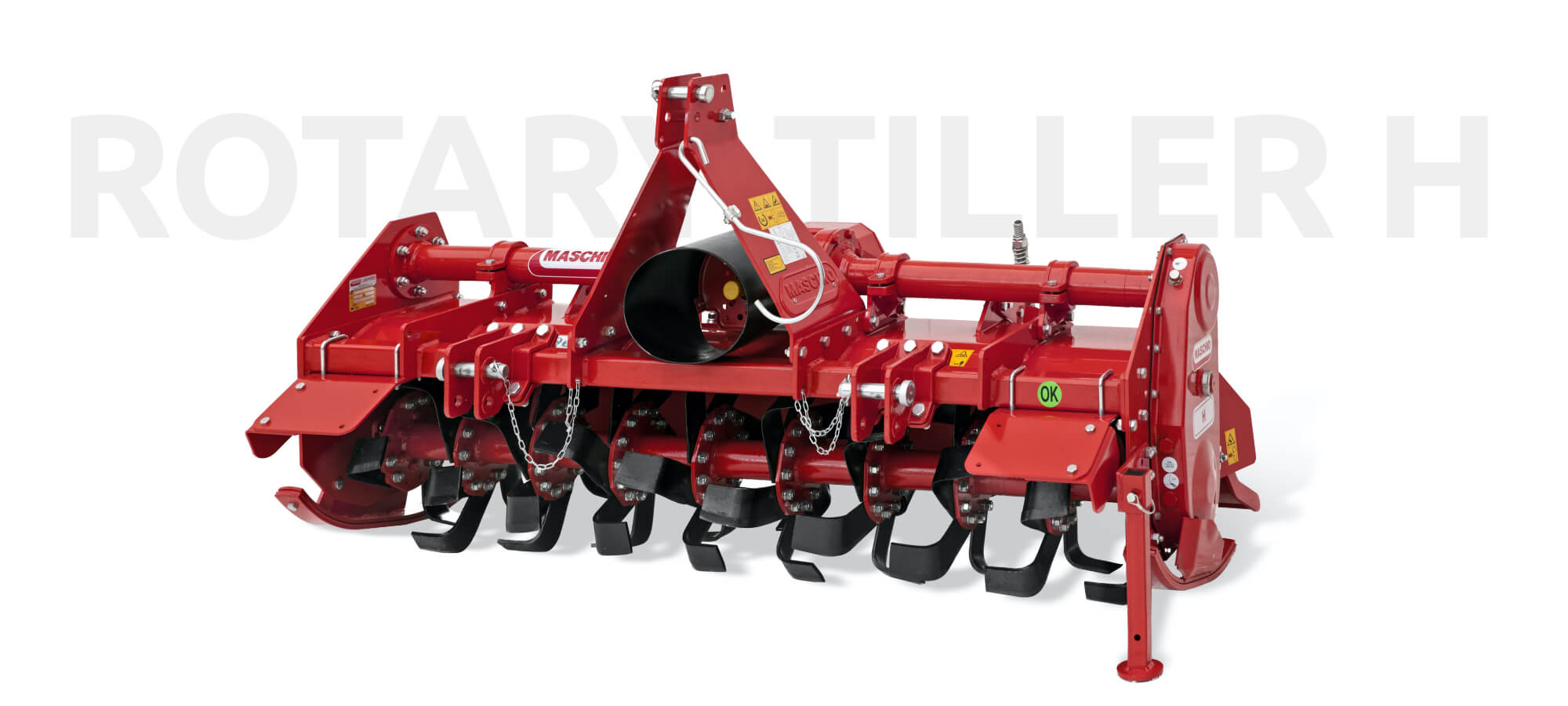

ROTARY TILLER H
Fixed rotary tiller

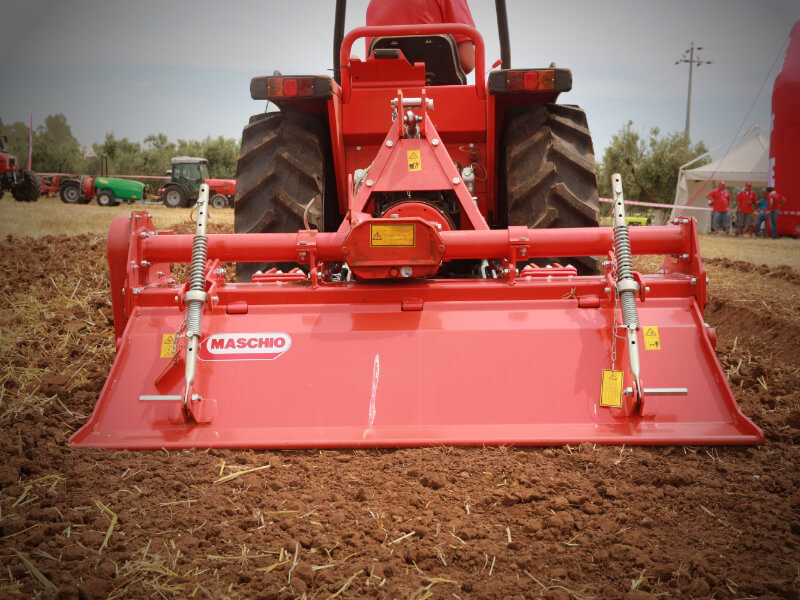

Model H rotary tiller is the starting point of the professional range while maintaining very compact dimensions. Rotary tiller H features high-range machine details that make it ideal for working in small farms both in open field and in greenhouses thanks to working widths up to 2,05 m.
Power required
35 - 60 HP
Working width
1,45 -2,05 cm
Number of blades
42 - 60
Working depth
22 cm

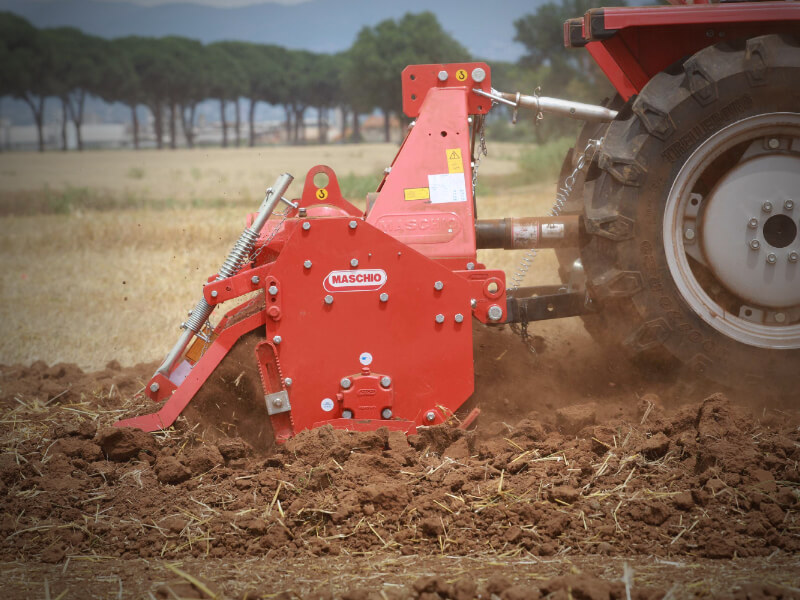

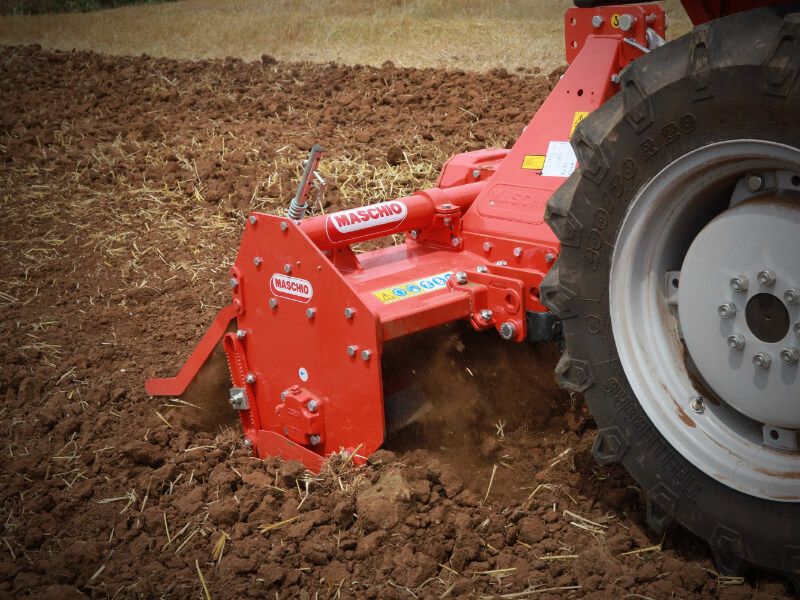

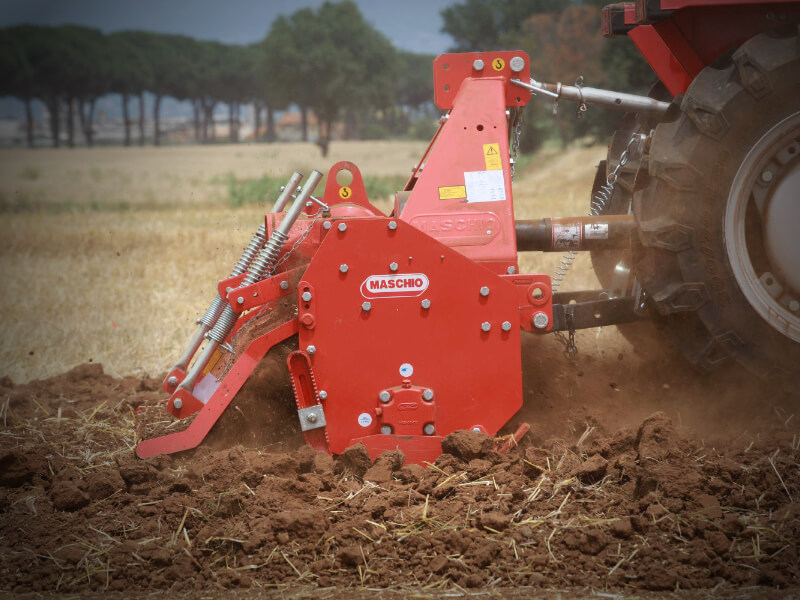

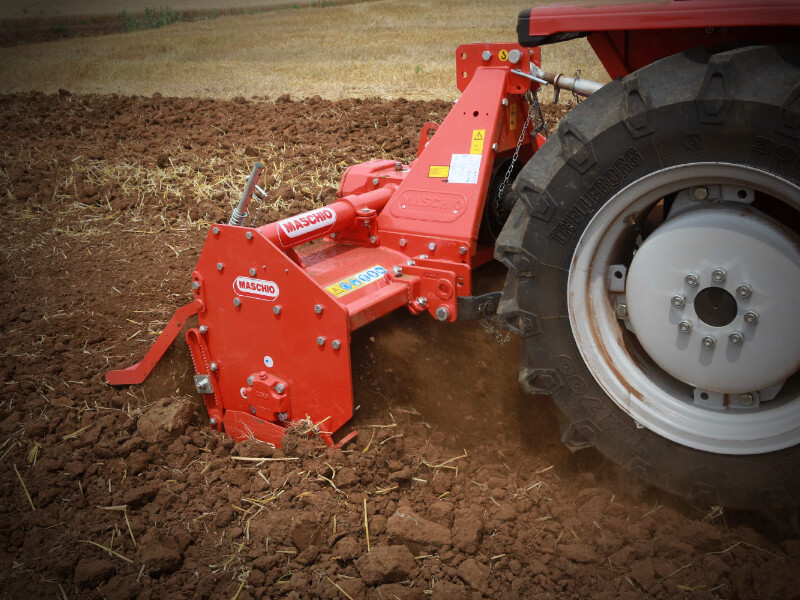

Professional structure
The professional equipment set-up is seen in details such as the more robust frame structure, the slip clutch PTO shaft and the 3-gears side drive gearbox that ensures constant transmission without loss of power. Ease of use is ensured by details such as the toothed bar side skids that allow to quickly adjust the depth up to a max of 22 cm. The rear bonnet made with oversized sheet metal ensure wear resistance, it has a curved design capable of ensuring perfect soil levelling in all conditions. Thanks to the presence of spring-regulated jacks, it is possible to vary height which will affect the level of breaking of the soil.
High reliability
Waterproof seals are present to preserve the transmission gears, consisting of two metal rings opposite each other and separated by a thin film of oil. This ensures total isolation of the rotor bearings from mud, water and dust, allowing to work even in extreme conditions such as rice fields.
Special contents

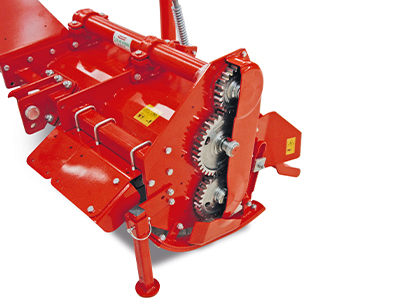

SIDE DRIVE
Model H rotary tiller is equipped with a three-gears side drive box that ensures constant transmission without loss of power.

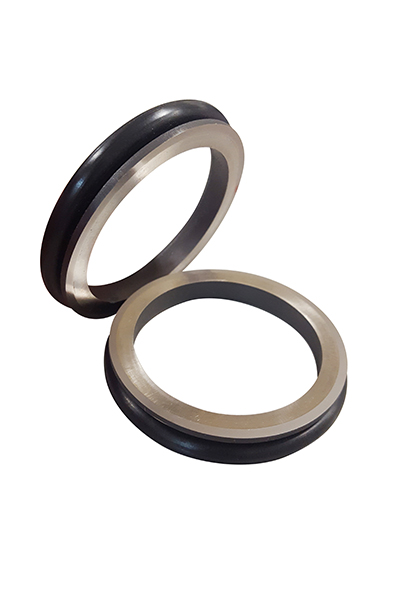

WATERPROOF SEALS
The waterproof mechanical seals consist of two metal rings opposite each other and separated by a thin film of oil. This ensures total isolation of the rotor bearings from mud, water and dust. It is also possible to work in submersion in rice fields.
H
TECHNICAL DATA
| Measure | 145 | 165 | 185 | 205 |
| Min power HP | 35 HP | 40 HP | 45 HP | 50 HP |
| Max power HP | 60 HP | 60 HP | 60 HP | 60 HP |
| Working width | 1,45 m | 1,65 m | 1,85 m | 2,05 m |
| Transport width | 1,57 m | 1,77 m | 1,97 m | 2,17 m |
| N. of blades | 42 | 48 | 54 | 60 |
| Working depth | 22 cm | 22 cm | 22 cm | 22 cm |
| Weight | ≥ 350 kg | ≥ 385 kg | ≥ 408 kg | ≥ 437 kg |
STANDARD DOTATION
Universal 3-point hitch:
I^ cat. (145)
II^ cat. (165-185-205)
PTO shaft with slip clutch (tractor side yoke 1" 3/8 Z6)
Side gears drive in oil bath
Offset front bar hitches
Bonnet spring adjusters
6 blades per flange (side blades are always mounted inwards)
Rotor bearing support with amphibious mechanical seals
CE safety protections
Tractor connection
Chassis accessories
