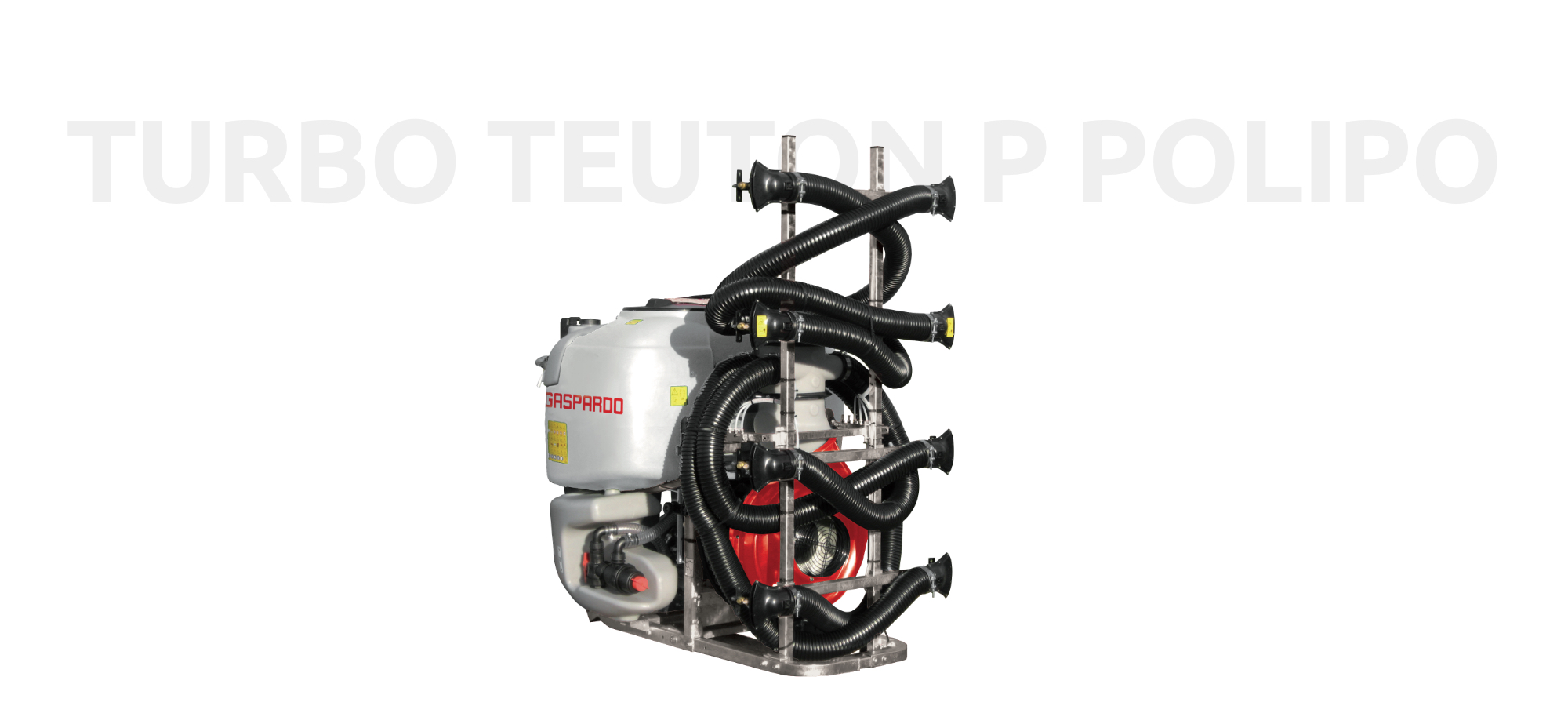

TURBO TEUTON P POLIPO

Low volume mounted mistblower

TURBO TEUTON P POLIPO was created from the need to ensure high treatment efficiency with great attention to the environment, minimising the pollution diffused by the distribution of plant protection products. This is made possible thanks to the localised diffusion system and the high coverage capacity of the treatment through the production and atomised distribution of micro drops. TURBO TEUTON system is ideal for the treatment of crops with irregular leaf walls or in which covering treatments are privileged.

Tank capacity
315 - 634 L
Circuit rinse tank capacity
30 - 45 L
Max working pressure
50 bar
Fan diameter
490 mm

Quality materials

The mounted mistblowers are subjected to strong vibrations and structural stress. The continuous movement of the liquid creates continuous inertia especially in hilly environments where vineyards and orchards are often located, situations that greatly stress the tank and the frames. For this reason, the construction components and materials used have been carefully studied to ensure sturdiness and low maintenance over time. The frame, made of high-strength steel, also ensures high corrosion resistance thanks to the hot-dip galvanisation treatment, while the high density polyethylene tanks ensure structural strength, low weight and high resistance to UV rays. Different types of steering drawbars are available on request for better versatility of use of the machine in the field, to ensure greater operator comfort and safety. TURBO TEUTON T POLIPO machines comply with European regulations in terms of MOTHER REGULATION road circulation.

Maximum effectiveness

Maximum treatment effectiveness is achieved thanks to the low volume dispensing system and the type of air conveyors that localise the flow on the surface to be treated. The low volume dispensed is obtained thanks to the combined action of mechanical pulverisation of the phytoiatric product flow through the high pressure pump and the particular nozzle used and pneumatic pulverisation carried out by the fan/diffuser assembly. In addition to directing the flow in the desired direction, the air conveyors ensure greater control of the treatment height also thanks to the possibility of excluding the individual nozzles. To increase treatment coverage and further reduce the risk of diffused pollution, the ELECTROSTATIC kit is available on request which, thanks to the electrodes placed at the air diffuser outlet, positively charges the droplets of the phytoiatric product flow so that they are attracted to vegetation naturally provided with negative charges.

New ISOTRONIC

TURBO TEUTON P POLIPO is also available in ISOTRONIC version with ISOBUS communication protocol. Thanks to the combination with the tractor’s Virtual Terminal or with different Virtual Terminals available upon request, sprayer management is simpler and more intelligent both in terms of precision farming and greater control of the functional parameters used in the field.

Special contents
POLIPO ESPALIER
POLIPO ESPALIER

The vertical construction arranges the dispensers parallel to the crop walls, ensuring treatment consistency with limited absorption. Versions are available with 4 or 5 dispensers per side, to be chosen according to the height of the row. The arms are manually adjustable in height and the dispensers can be tilted to better direct the chemical according to the conformation of vegetation; all adjustments are performed manually by means of knobs and screws. OPTIONAL extendable arms are available for treatments in particularly wide rows (up to 4 m).

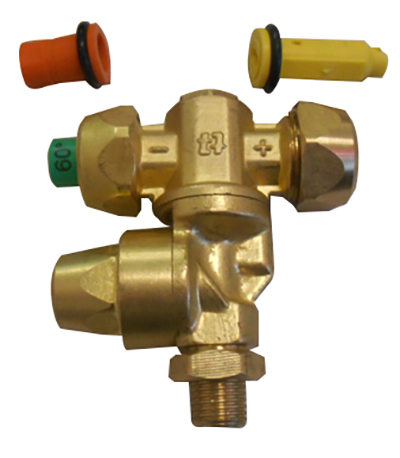

JETS - NOZZLES
JETS - NOZZLES

The twin (or single) jets made of brass have three opening positions, quick rotating closure and are equipped with drip-saver valve. Colour coded ISO nozzles are available in different sizes for low, medium or high volume treatments. Made of ceramic, they offer excellent abrasion resistance and empty cone dispensing with a 60° or 80° angle depending on the model;

ISOBUS FUNCTIONS
ISOBUS FUNCTIONS

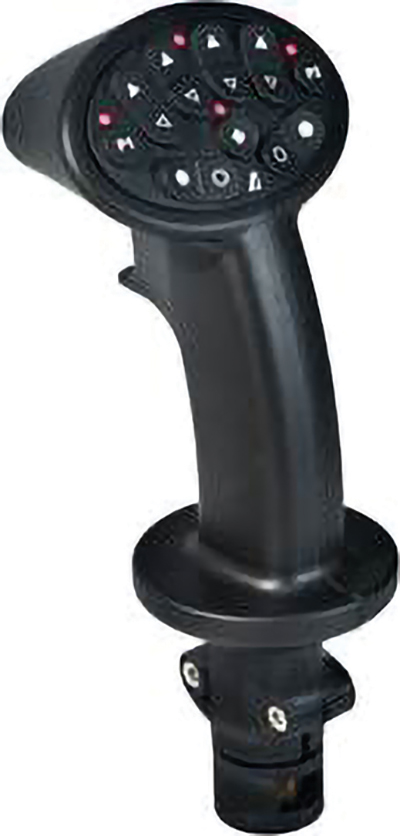

GASPARDO ISOTRONIC mistblowers make it possible to exploit the ISOBUS AUX-N function, which allows controlling the water and hydraulic functions via joystick.

Why choose TURBO TEUTON P POLIPO

TURBOTEUTON P POLIPO exploits the advantages of a solid but lightweight frame together with the mixed spraying system that reduces volumes without increasing the risk of drift.

TURBO TEUTON P POLIPO
TECHNICAL DATA
Measure 300400600
Real tank capacity
329 l
423 l
634 l
Circuit rinse tank capacity
30 l
45 l
45 l
Fan group
TURBOTEUTON POLIPO
TURBOTEUTON POLIPO
TURBOTEUTON POLIPO
Fan diameter
490 mm 16 blades
490 mm 16 blades
490 mm 16 blades
Weight
≥ 375 kg
≥ 415 kg
≥ 420 kg
STANDARD DOTATION
Hot dip galvanized frame Bumper protection 2 ways electric pressure regulator Comet pump Brass pump Total emptying polyethylene tank Hinged lid with bayonet joint Handwashing tank Circuit rinse tank integrated with connections and rinse tank jet DEVIOKIT: circuit rinse system even with full tank Inspectionable external suction filter with filling connection Hydraulic tank agitator Appratus 8 dispensers: Dispensers for row-spacing 1,8 m - 4,0 m Rear suction fan group Painted conveyor and centrifugal rotor Multiplier transmition with disengagement, (2 speed) Facilitated multiplier oil filling Clutch in sintered material Stainless steel rod holders Anti-drip double brass quick shut off jets with nozzles Nozzles HCI 80-01 orange in ceramic Nozzles HCI 80-02 yellow in ceramic
TURBO TEUTON P POLIPO ISOTRONIC
TECHNICAL DATA
Measure 300400600
Real tank capacity
329 l
423 l
634 l
Circuit rinse tank capacity
30 l
45 l
45 l
Fan group
TURBOTEUTON POLIPO
TURBOTEUTON POLIPO
TURBOTEUTON POLIPO
Fan diameter
490 mm 16 blades
490 mm 16 blades
490 mm 16 blades
Weight
≥ 380 kg
≥ 400 kg
≥ 420 kg
STANDARD DOTATION
Hot dip galvanized frame Bumper protection Spraying computer ISOBUS Comet pump Brass pump Total emptying polyethylene tank Hinged lid with bayonet joint Handwashing tank Circuit rinse tank integrated with connections and rinse tank jet DEVIOKIT: circuit rinse system even with full tank Inspectionable external suction filter with filling connection Hydraulic tank agitator Appratus 8 dispensers: Dispensers for row-spacing 1,8 m - 4,0 m Rear suction fan group Painted conveyor and centrifugal rotor Multiplier transmition with disengagement, (2 speed) Facilitated multiplier oil filling Clutch in sintered material Stainless steel rod holders Anti-drip double brass quick shut off jets with nozzles Nozzles HCI 80-01 orange in ceramic Nozzles HCI 80-02 yellow in ceramic
