Roller

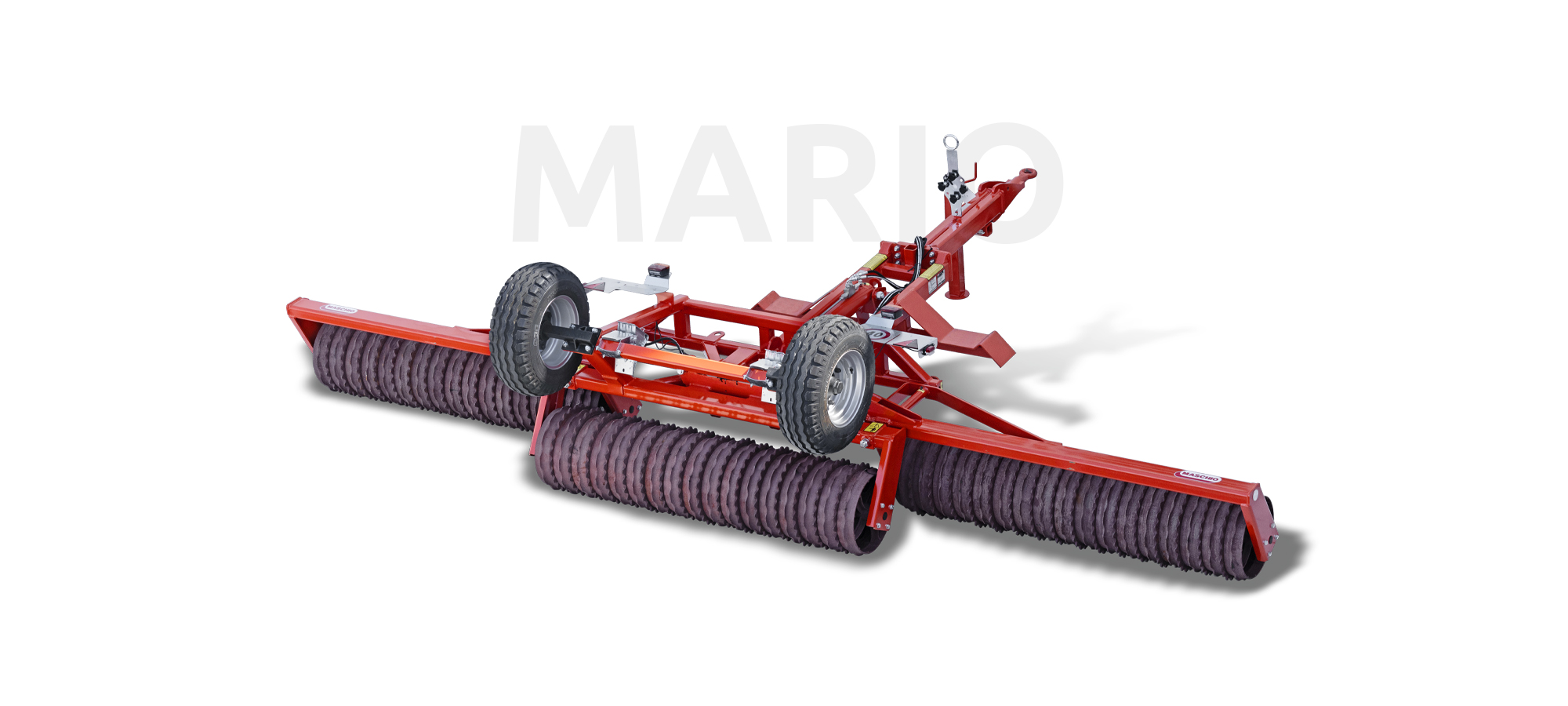

MARIO is a semi-mounted CAMBRIDGE type compacting roller, designed to reduce soil evaporation before and after seeding. Available with a 6.2 m work width and can be coupled with tractors with a power of at least 54 HP.

The roller is made of cast-iron and consists of many 520 m elements side by side, with a toothed profile. The elements are independent of each other so that they adhere to the ground along their entire length.

The roller opening and closing is hydraulic. The wheels lift it in transport to ensure greater space under the frame. A parking foot stabilises the roller when parked.

Power required
54 HP
Working width
6,2 m
Transport width
2,55 m
Weight
2.990 kg
RULLO MARIO LIGHT - Rullo costipatore

Versatility of use

The frame - which is a folding model - is designed so that the roller can be split into three parts for easier transport.
The MARIO is type approved for use on Italy's roads.

MARIO LT ROLLER
TECHNICAL DATA
Measure 620
Min power HP
54 HP
Working width
6,2 m
Transport width
2,55 m
Machine sections
3
Weight
3.000 kg
STANDARD DOTATION
Demultiplied drawbar placed horizontally on the chassis Hydraulic frame opening and closing System for automatic locking of sections in transport position Central roller raised during transport to overcome all obstacles easily Tubular frame 140 x 80 mm Square axle 60 mm - wheelbase 2.75 / 2.90 m Support with self-aligning ball bearings, waterproofed with lubricator Grease lubricated axles Oscillating rollers to adapt to the contour of the ground Standard Cambridge Disc Ø520 mm Dynamic load 5500 kg per bearing Wheels type: 10.0/75x15.3 Pivoting towing eye Ø50mm light kit
