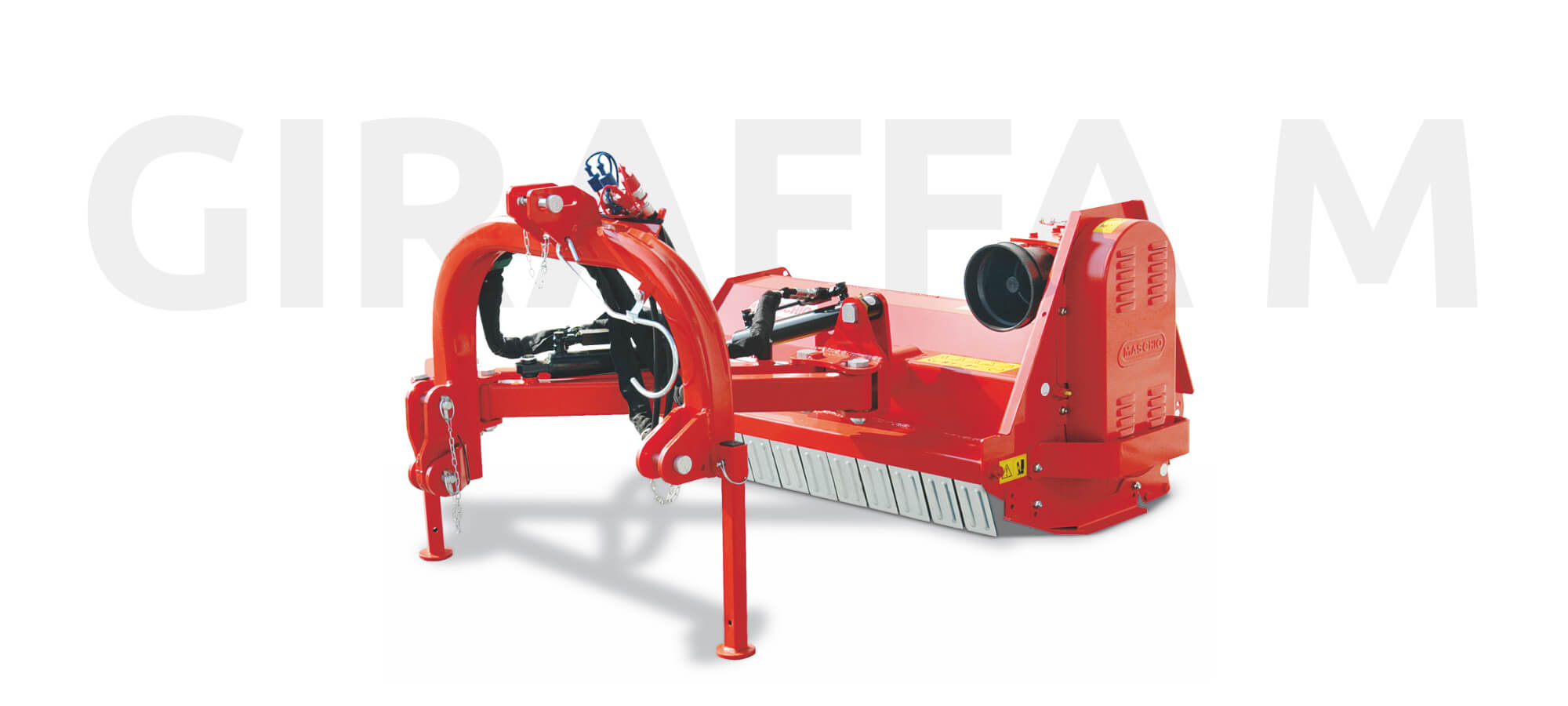

GIRAFFA M

Side-mounted mulcher

GIRAFFA M is a side-mounted mulcher that stands out for its ease and versatility of use in dealing with grass or brush, either behind or to the side of the tractor. Suitable for any use, equally happy working in olive groves, hazel groves and orchards as it is mowing along headlands, ditches or hedgerows, GIRAFFA M is available in working widths ranging from 1.2 to 1.75 m, paired with tractors with horsepower in the 35 to 60 range and with a maximum tread width of 1.5 m.

Power required

35 - 60 HP

Working width

1,2 - 1,75 m

Number of hammers

16 - 24

Woody material diameter

6 cm

Nowhere it can't reach

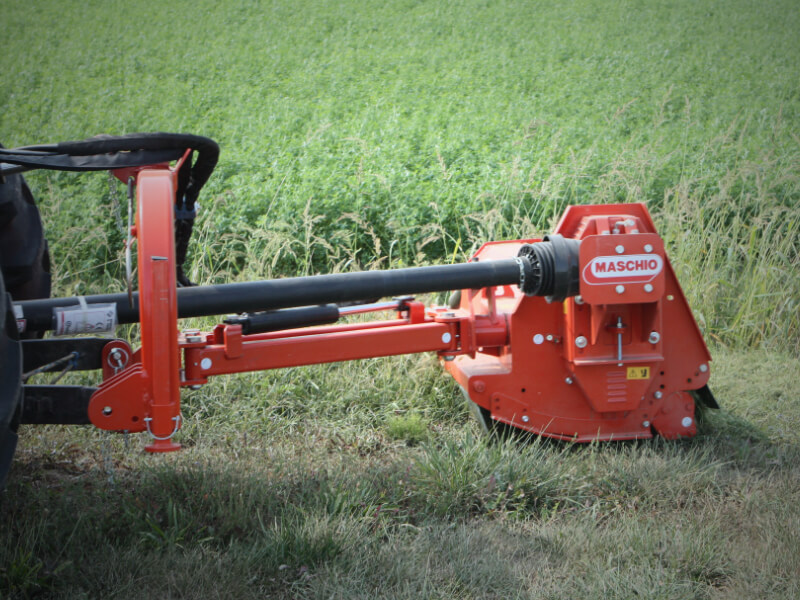

GIRAFFA M's parallelogram frame arm gives it a wide range of movement, both horizontally - even in conjunction with front-mounted equipment - and vertically thanks to inclines ranging from -65° e +90°. The version with the externally mounted gearbox gives it greater offset.

The gearbox shaft features a freewheel, while the PTO, which comes as standard, is direct drive.

Shock protection system

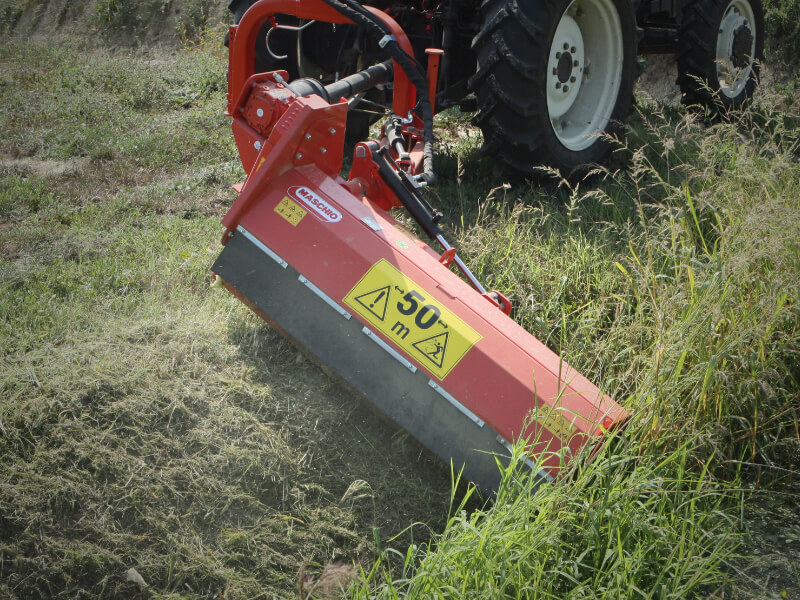

The head's floating system allows it to follow the contours of the surfaces being worked on, preventing any damage to the structure. The connecting rod on one of the lower hitch points is an additional safety measure in the event of collision with obstacles.

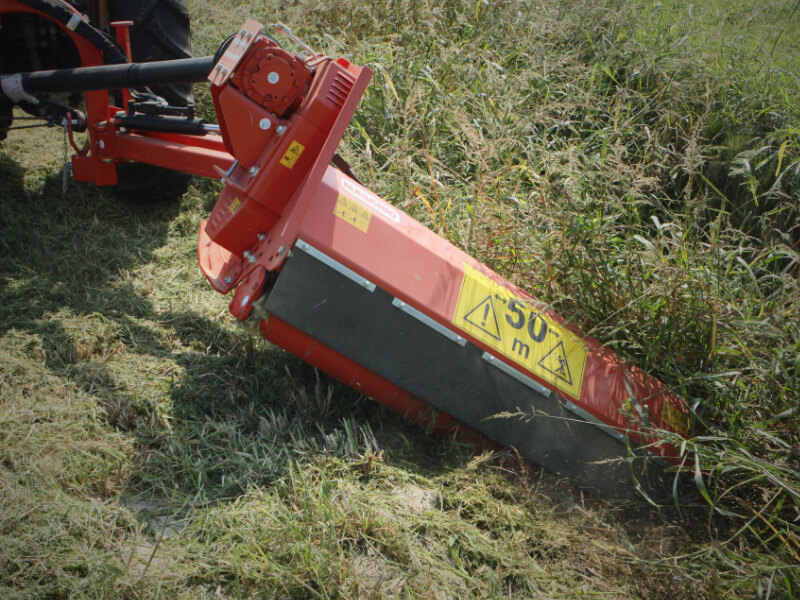

GIRAFFA M comes in two versions: with the gearbox mounted internally or externally. The internal version is recommended if the unit is going to be used mainly on the flat or for vertical work (hedgerows, banks). The external version gives greater reach for ditch work.

Effortless mulching

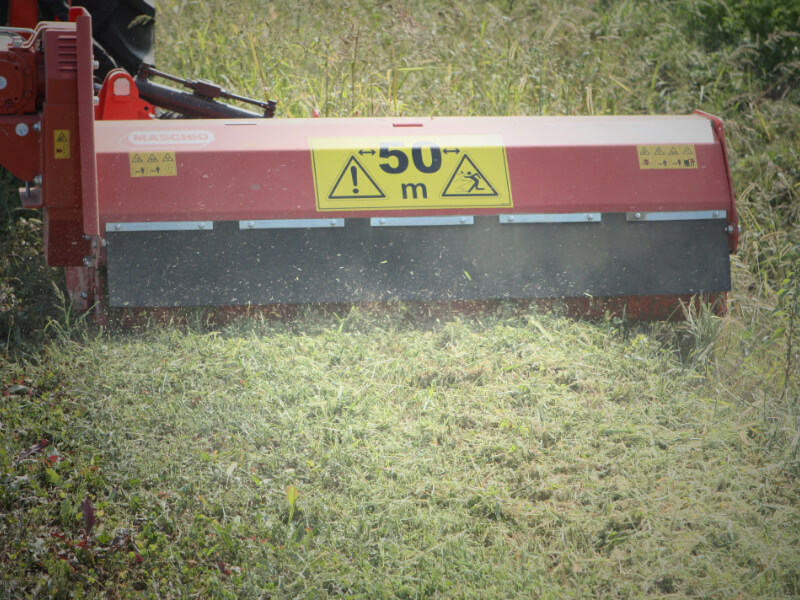

Hammer flails are tasked with shredding, effortlessly handling even woody brush. The electronically balanced rotor ensures consistently high speeds with very little vibration.

GIRAFFA M can be fitted with a double skin protection, which is recommended when dealing with hard debris or stones.

Self-cleaning roller

The rear roller, whose purpose is to compact the resulting shredded residue, is a self-cleaning model thanks to its location near the rotor, and can be set to two different positions. This adjustment ensures unbeatable stability in any conditions.

Special contents

ELECTRONICALLY BALANCED ROTOR

The rotors on MASCHIO mulchers are balanced electronically in order to provide the hammer flails with a high speed of rotation whatever the work condition, low vibrations and reduced power requirements. This means the machine has a longer service life.

DRIVE BELT TENSIONING

The 5 drive belts can be tensioned simply and easily by means of a practical external screw system. All implements are fitted with toothed belts that, unlike plain belts, prove more effective and offer greater performance.

ROTATABLE ROLLER BEARINGS

MASCHIO mulchers feature bearings comprising two rows of balls, which provide excellent impact resistance and allow them to withstand heavy workloads. Main advantages: long lifespan (30% longer than traditional bearings), high resistance and load capacity, and low maintenance.

TOOTHED LOWER COUNTER BLADE

For a finer mulch, the machine comes with a toothed lower counter blade welded to the internal structure.

SHOCK PROTECTION SYSTEM

The shock protection system protects the cutting head when it accidentally hits an obstacle.

Why choose GIRAFFA M

Multi-purpose, robust model for operations in orchards, olive and hazelnut groves as well as near parks, ditches and headlands.

GIRAFFA M

TECHNICAL DATA

Measure	120 SE	120 SI	140 SE	140 SI	160 SE	160 SI	180 SE	180 SI
Gearbox	External	Internal	External	Internal	External	Internal	External	Internal
Min power HP	35 HP	35 HP	40 HP	40 HP	45 HP	45 HP	50 HP	50 HP
Max power HP	60 HP	60 HP	60 HP	60 HP	60 HP	60 HP	60 HP	60 HP
Working width	1,2 m	1,2 m	1,4 m	1,4 m	1,6 m	1,6 m	1,75 m	1,75 m
Transport width	1,56 m	1,33 m	1,76 m	1,55 m	1,96 m	1,75 m	2,11 m	1,9 m
Max cutting diameter	3 cm	3 cm	3 cm	3 cm	3 cm	3 cm	3 cm	3 cm
PTO rotation rpm	540 std	540 std	540 std	540 std	540 std	540 std	540 std	540 std
Weight	≥ 385 kg	≥ 385 kg	≥ 384 kg	≥ 384 kg	≥ 425 kg	≥ 405 kg	≥ 445 kg	≥ 425 kg

STANDARD DOTATION

Universal self-balancing 3-point hitch cat. I^ (I^N for 120) Gearbox PTO 540 rpm with free-wheel Front safety flaps Hydraulic system for side or inclined offset Transmission belts external adjustment Electronic balanced rotor Hammers kit "20" Pair of skids Self cleaning adjustable rear levelling roller Lower counter-blade Bracket for drive cover protection Shockproof protection system 90° breather pipe Standard PTO shaft CE safety protections Shredder head floating system
