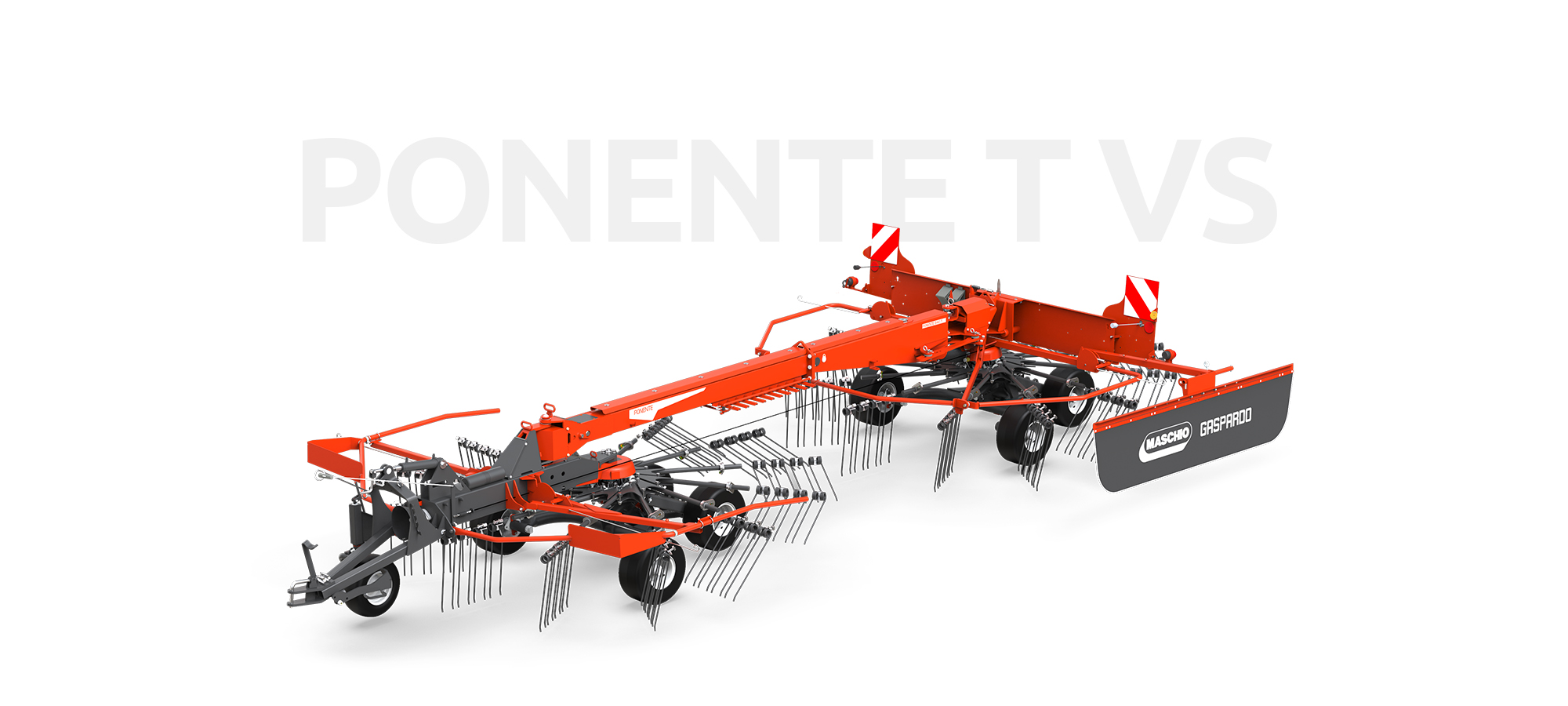

PONENTE T VS

Trailed rake with double central rotor

Thanks to the multilink frame, the PONENTE T VS allows convenient adjustment of the working width directly from the tractor cab, up to 6.40 meters. It enables swath deposition on the left side in single, double, or angled mode. The system consists of a fixed front rotor, connected to the tractor via the drawbar, and a movable rear rotor, hinged on the same frame.

Power required
40 HP
Working width
3,6 - 6,35 m
Swath width
0,6 - 1,3 m
Number of rotors
2

Working mode

The T VS model allows for two different working modes thanks to the modularity of its frame. In single mode, it forms one unique swath (central or lateral), while in double mode, it creates two single swaths (one per rotor).

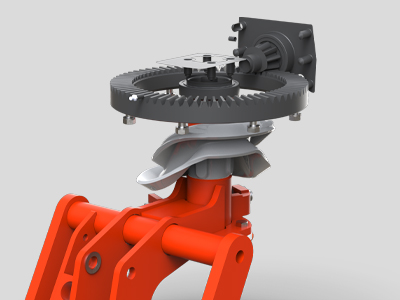

Reinforced cams

Our steel cam protections ensure longer service life and reduced friction, enabling uninterrupted, continuous work. Fewer stops for maintenance or breakdowns mean more time for creating the perfect swath every time.

Safe transport

Road transport is made possible by aligning the rotors beneath the frame (with at least half of the tine arms removed).

Mother regulation

The PONENTE T VS complies with the Mother Regulation, ensuring proper and safe road transport of the machine within the European Union.

Special contents

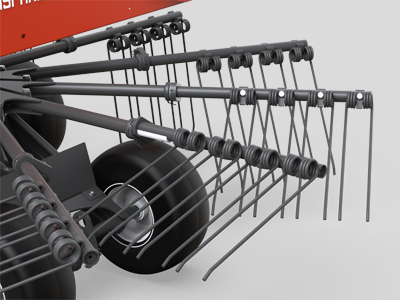

TANGENTIAL TINE ARMS

The tine arms are positioned at a steep angle relative to the rotor, ensuring optimal swath formation in all conditions. The tines gently lift and move the material without causing any damage.

REDUCED MAINTENANCE

Farmers' work has always been heavily influenced by the weather. With gear transmission and grease lubrication, downtime for maintenance is now minimized, allowing more time for productive work. Timely operation is assured.

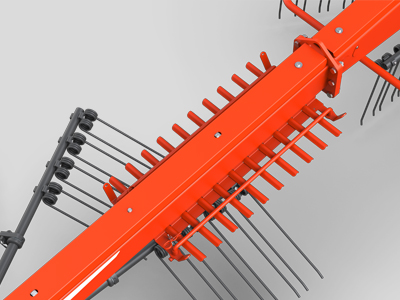

TINE ARM STORAGE

The tine arms can be quickly removed without tools and stored in a dedicated space. This improves visibility and safety during transport while also enhancing general practicality for tasks such as winter storage.

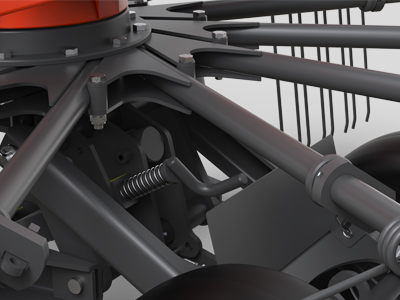

WORKING HEIGHT

For proper and clean collection, the working height can be manually adjusted using a crank.

Why choose PONENTE T VS

Hay tedder designed to enhance field productivity for large-scale farms and professional contractors.

PONENTE T VS
TECHNICAL DATA
Measure 640640 A
Min power HP
40 HP
40 HP
Working width min
3,6 m
3,6 m
Working width max
6,35 m
6,35 m
N. of rotors
2
2
Swath width min
0,6 m
0,6 m
Swath width max
1,3 m
1,3 m
Transport width
3 m
3 m
Axle
Tandem axle
Tandem axle
Weight
1.570 kg
1.660 kg
STANDARD DOTATION
PTO 540 rpm PTO shaft (tractor side yoke 1" 3/8 Z6) Tow bar attachment Tandem axle with twin wheels Hydraulic lifting of rotors with a ground clearance of 45cm Adjustable working height with handle. Adjustable swath forming curtain Three-dimensionally articulated rotors Tangential folding of tooth-holder arms Detachable arms with quick attachment and steel ball bearings with reinforced fixing on the rotor Tines with a thickness of 9 mm Steel protection for shaftcam Gearbox lubrication in a grease bath Front support wheel Support wheels in an advanced position compared to the rotor Required distributors: 1 single effect, 1 double effect light kit 3 functions Formation of 1 swath Formation of 2 swaths Possible to turn 2 single swaths VERSION 640A Active chassis steering
