Why choose VELOCE TX ISOTRONIC
An innovative and sustainable solution that combines high daily productivity for preparing large areas with low operating costs.

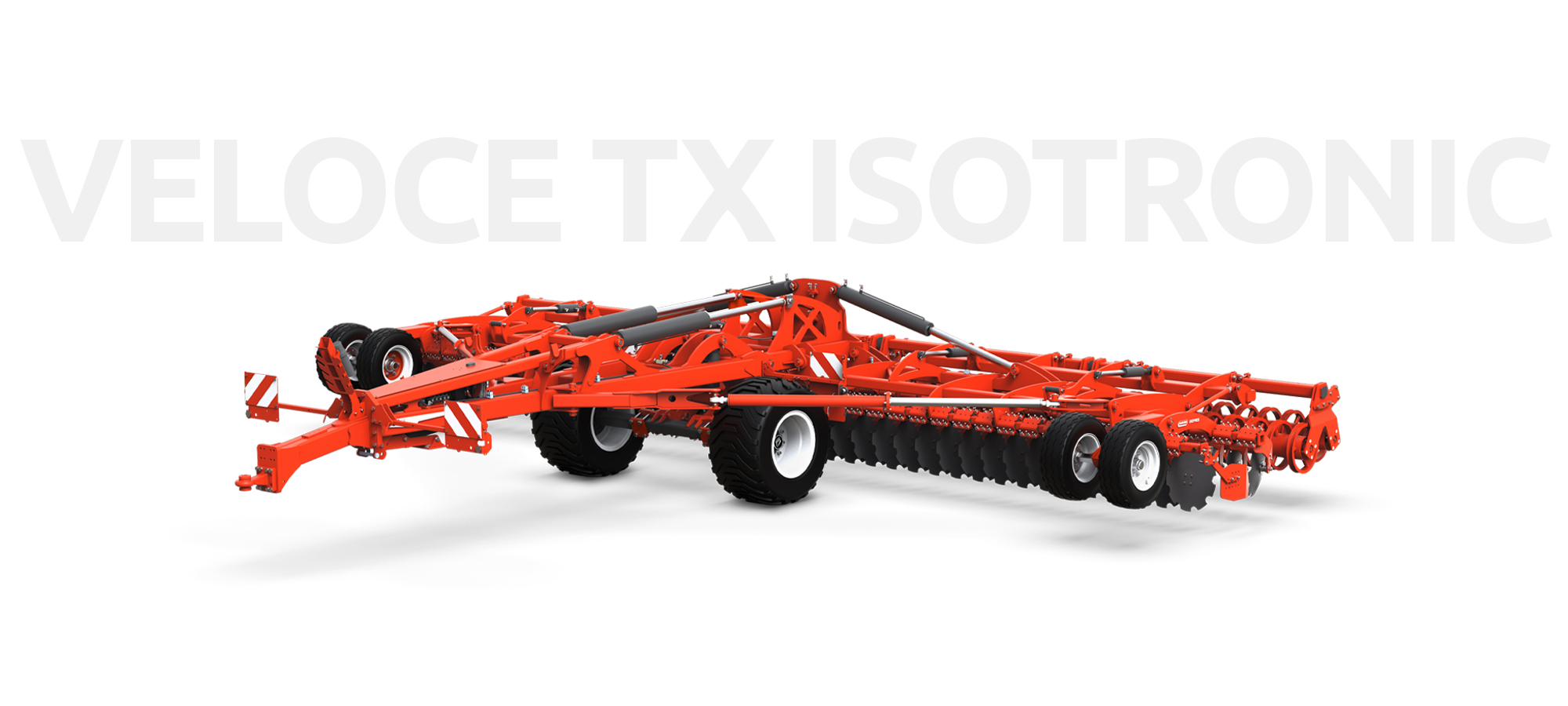

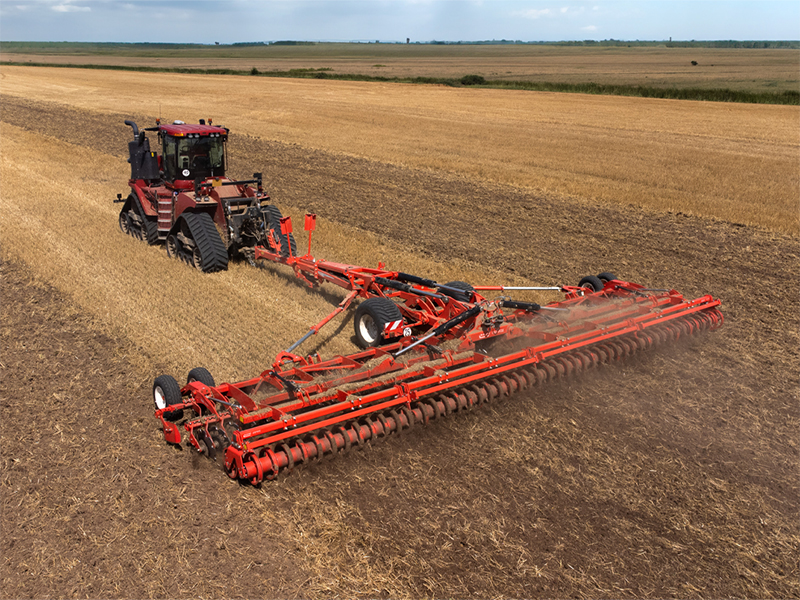

VELOCE TX ISOTRONIC by MASCHIO GASPARDO is a folding disc harrow designed for minimum tillage, combining operational efficiency with environmental sustainability. With working widths of 8.4, 10.4, and 12.4 meters, it is ideal for large farms and professional contractors seeking versatile and reliable equipment. ISOBUS compatibility ensures full control of its functions, while the robust structure and high-quality components guarantee durability and reduced maintenance. VELOCE TX ISOTRONIC is an advanced solution to optimize productivity, lower operational costs, and minimize environmental impact.
Low maintenance, high savings
The VELOCE TX ISOTRONIC is the ideal solution for those seeking productivity and cost-effectiveness. With an operational speed of 10–15 km/h, this machine ensures high work capacity, reaching up to 10 ha/hour at 12 km/h, optimizing operating times (10.4 m version). Equipped with AGRIHUB bearings, it guarantees durability while minimizing the need for frequent maintenance, significantly reducing management costs. Additionally, its low fuel consumption and efficiency in soil preparation help maximize farm profitability, making the VELOCE TX ISOTRONIC a winning investment for modern and sustainable agriculture.
ISOTRONIC
VELOCE TX ISOTRONIC is MASCHIO GASPARDO's first disc harrow to utilize the ISOBUS standard for full movement control. From opening and closing during the transition between working and transport phases to depth adjustment and calibration, every function is seamlessly managed.
Perfect performance, anywhere

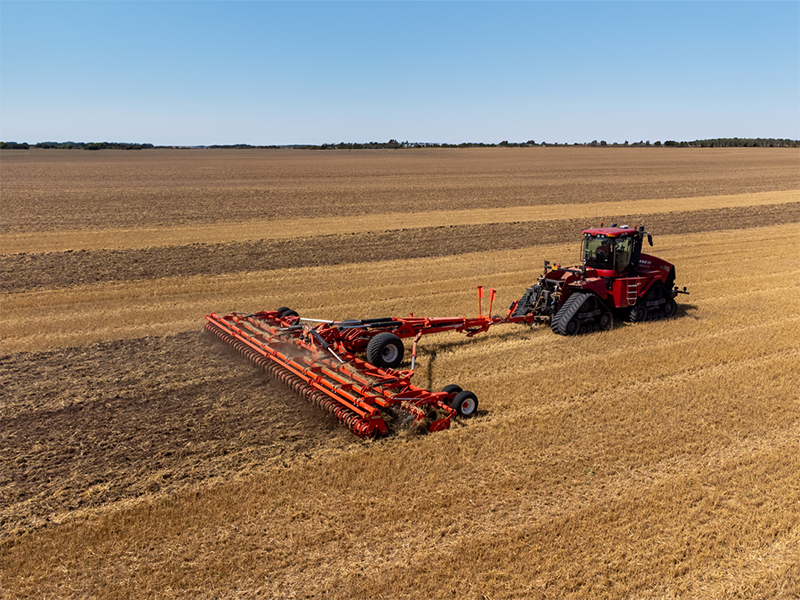

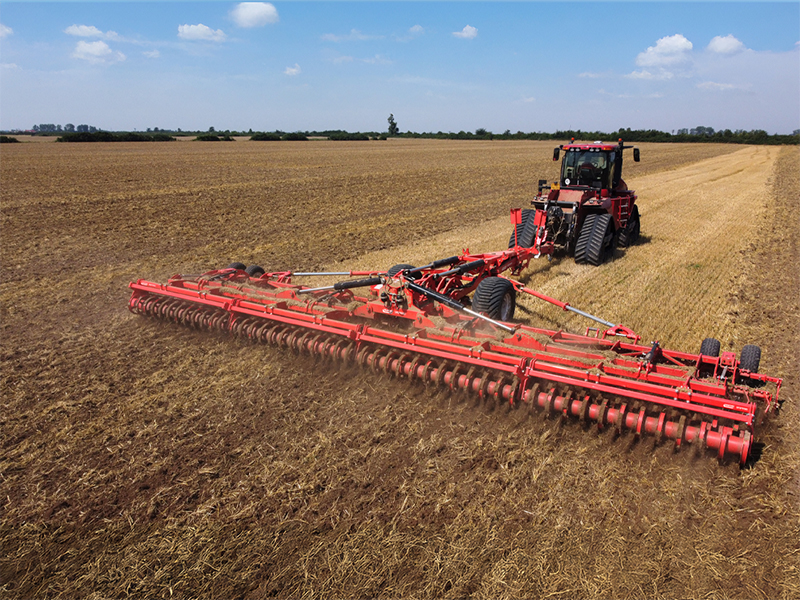

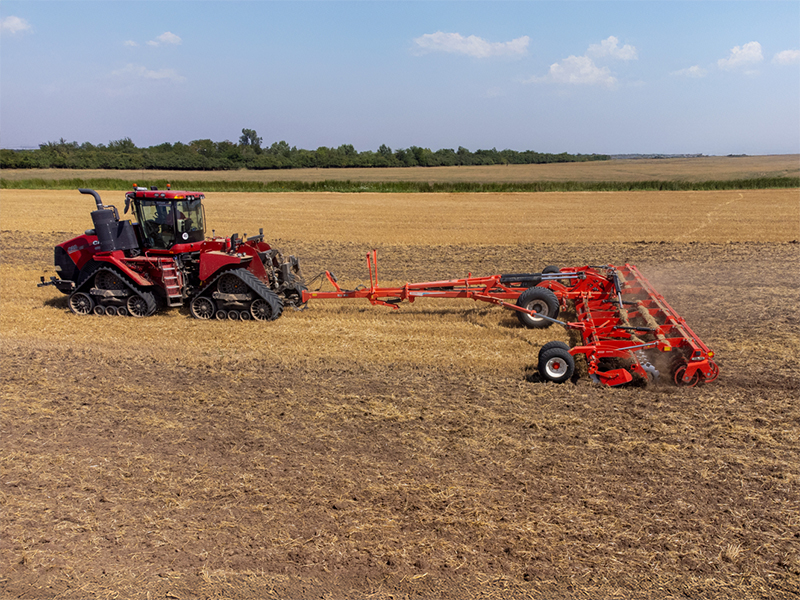

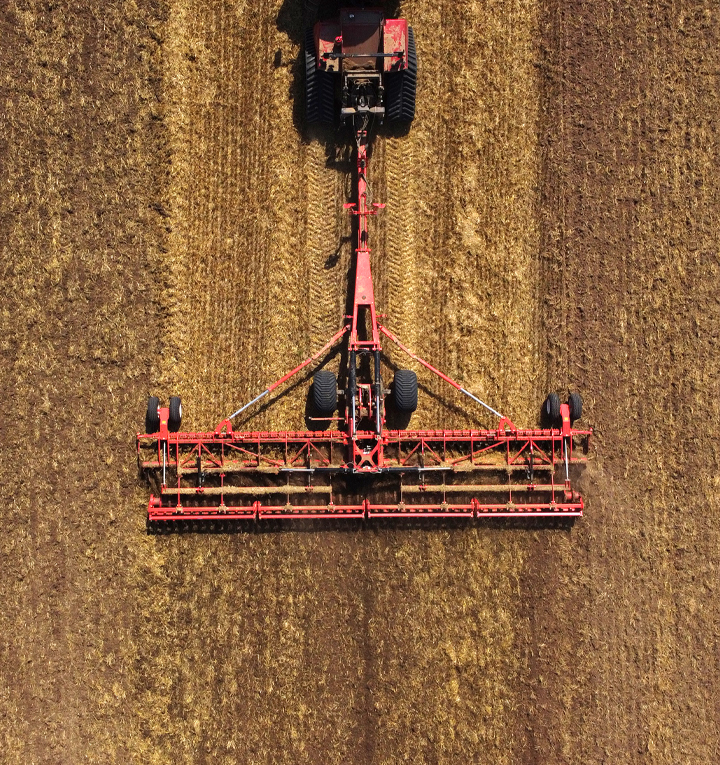

Thanks to the two rows of X-shaped discs, the VELOCE TX ISOTRONIC ensures aggressive cutting and effective mixing of crop residues down to a depth of 15 cm. The optimized inter-row spacing promotes smooth material flow, even at high speeds, making soil and residue management easy and efficient. This configuration guarantees balanced and drift-free traction, ideal for working in straight lines, even on hilly terrain and with GPS support. To complete the job, the rear roller—available in various configurations—delivers perfect soil reconsolidation tailored to field requirements.
Uncompromised mobility
Despite its generous dimensions, the folding frame allows for a transport width of just 3 meters and a height of 4 meters. Versions equipped with a braking system comply with the Mother Regulation (optional) for safe road transport within the European Union.

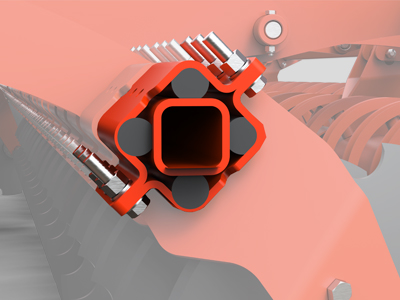

Four high-resilience rubber cylinders, Swiss-made for superior elastic energy absorption, provide rigidity to the entire disc gang, ensuring aggressive soil work without compromising the ability to absorb ground unevenness. All of this is achieved with zero maintenance requirements.

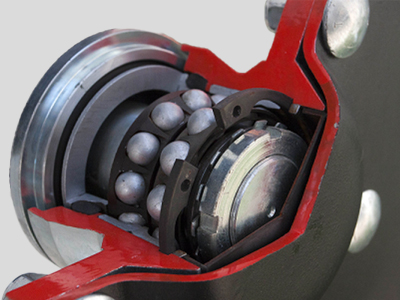

The hubs, manufactured by SKF®, feature each disc mounted on special opposing spherical bearings. The bearing is sealed against dust, mud, and dirt by a specialized gasket and a screwed cover, ensuring maximum reliability. Designed to deliver top performance with minimal maintenance, the hub eliminates the need for periodic greasing of individual discs!

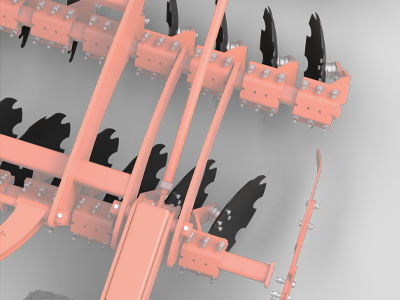

The discs have a concave shape, arranged in two rows in an "X" configuration. They are available in diameters of 560 mm or 520 mm (optional), with 9 or 15 teeth depending on the amount of crop residue to manage. Their horizontal and vertical inclination (17° and 7°, respectively) ensures improved mixing of soil and crop residues.

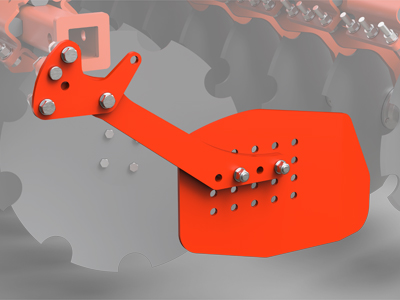

On the side opposite the adjustment discs, the side containment deflector ensures an excellent finishing of the work. Standard on all versions.
Three roller options are available for all versions and in various diameters: double "U" (460 mm), double cage (400 mm), and ring packer (600 mm). These options allow for effective management of any soil type, ensuring leveling, compaction, and agronomic benefits.
Maximum field performance for both seedbed preparation after tillage and the management and mixing of crop residues such as corn, wheat, sunflower, and cover crops.
