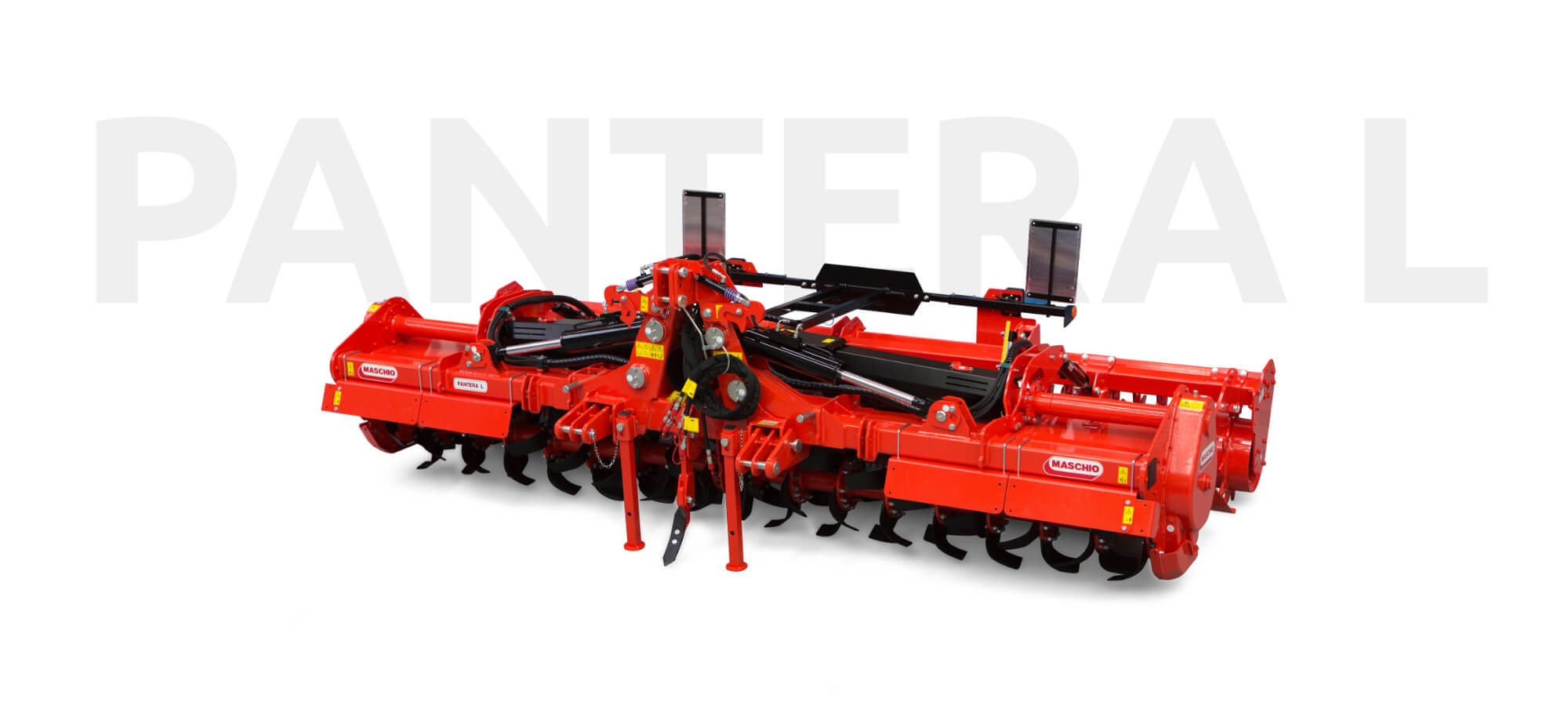

PANTERA L

Folding rotary tiller with gearbox

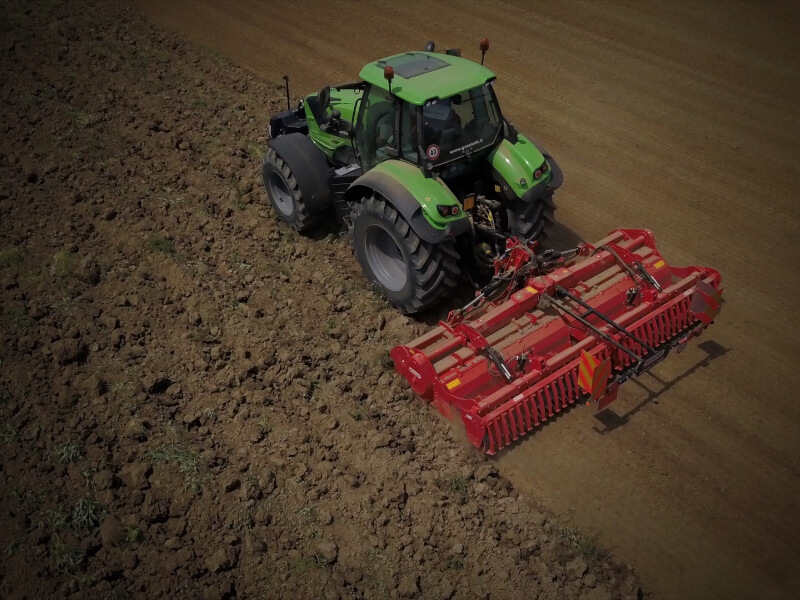

PANTERA L is a professional folding rotary tiller that combines the frame structure of PUMA model with the rotor of the larger PANTERA model. Born from the need of farmers using tractors in the 200 – 300 HP, PANTERA L stands out for being a high-end equipment but with a low weight, capable of reaching a working depth up to 10.6 in.

Power required

190 - 320 HP

Working width

14 - 15.7 ft

Number of blades

96 - 108

Working depth

10.6 in

PANTERA L - Zappatrice pieghevole con cambio di velocità

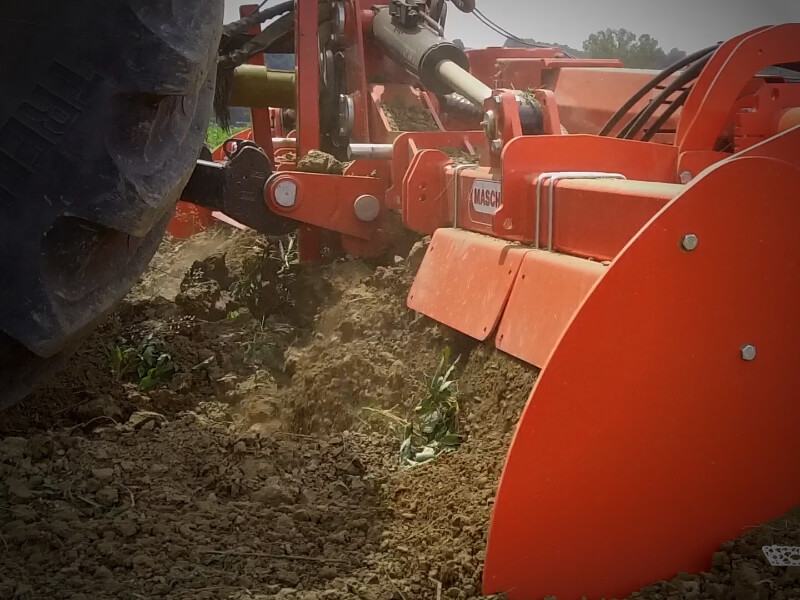

HEAVY DUTY structure

The consolidated structure of PUMA is enriched by high-end technical features, such as the 22.4 in rotor, the roller bearings, ideal in high stress situations, or the plate PTO shafts protections, more resistant than the classic plastic cover. To increase operator comfort, the rear bonnet and roller can be adjusted hydraulically directly from the tractor cab. PANTERA L is also equipped with PTO shafts for side drive with cams protection.

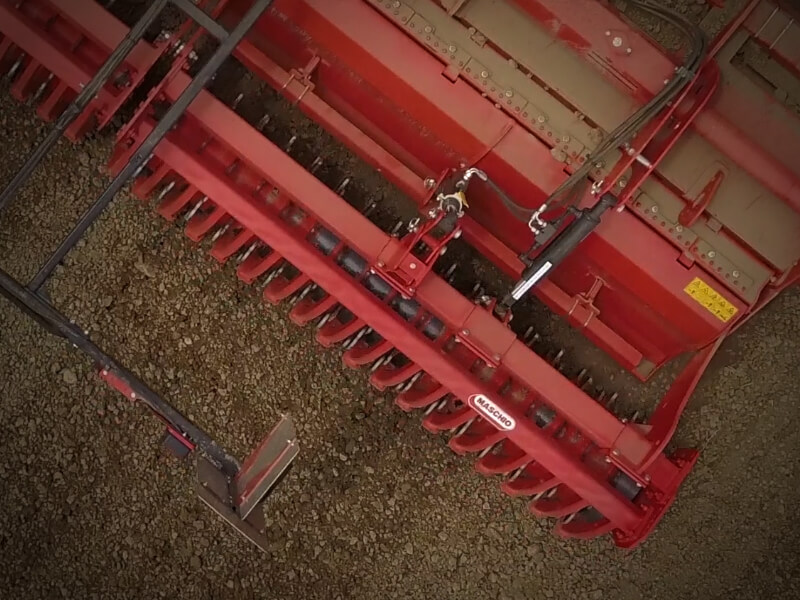

REVERSE version

The REVERSE version allows the rotary tiller to be mounted from the front with reverse rotation of the tiller rotor. Combined with a sorting grille and a levelling blade, it allows soft soil to be brought back to the surface, making subsequent seeding or transplanting easier. Ideal solution for various horticultural crops both on the field and in greenhouse.

RAPIDO Version

This set-up adds the QUICK release kit to the standard version. This robust solution patented by MASCHIO GASPARDO allows the use of only 3 shear bolts to firmly fix the 6 blades of each flange. The innovative technical solution for inserting the QUICK release blades ensures greater strength due to the presence of the double flange.

Cobra and Condor optional rotors make it even more efficient on hard or stony ground.

Special contents

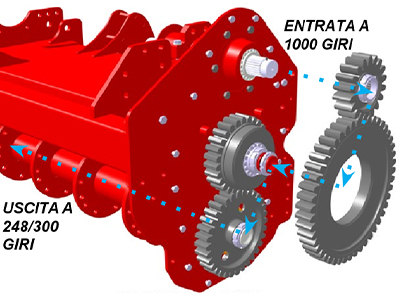

4-GEARS SIDE DRIVE

The 4UATTRO+ system uses 4 robust gears as side drive to reduce rotor revolutions.

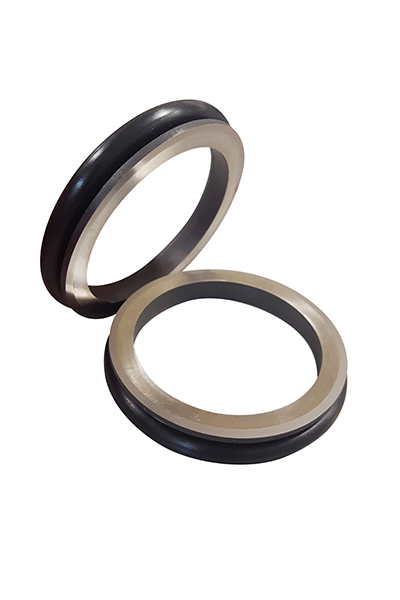

WATERPROOF SEALS

The waterproof mechanical seals consist of two metal rings opposite each other and separated by a thin film of oil. This ensures total isolation of the rotor bearings from mud, water and dust. It is also possible to work in submersion in rice fields.

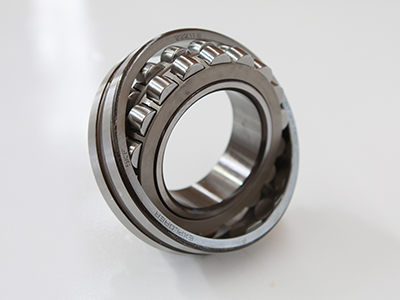

LONG LIFE BEARINGS

MASCHIO rotary tillers are equipped with bearings consisting of a double series of spheres for great resistance to impacts and heavy workloads. Main advantages: long Life (up to 30% longer life than traditional bearings), high strength and load capacity, reduced maintenance.

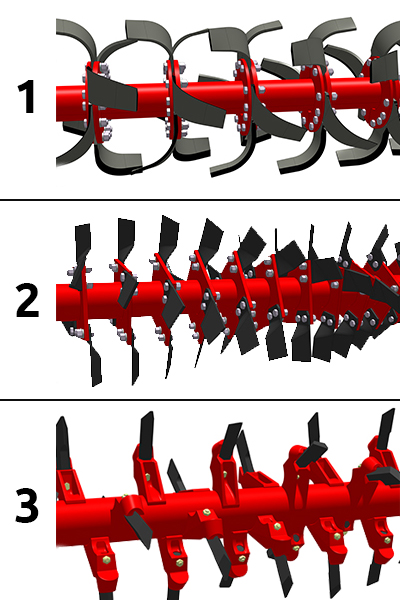

AVAILABLE ROTORS

1. Blade rotor in normal working conditions;

2. Cobra rotor on dry and very hard soil;

3. Condor rotor on stony ground.

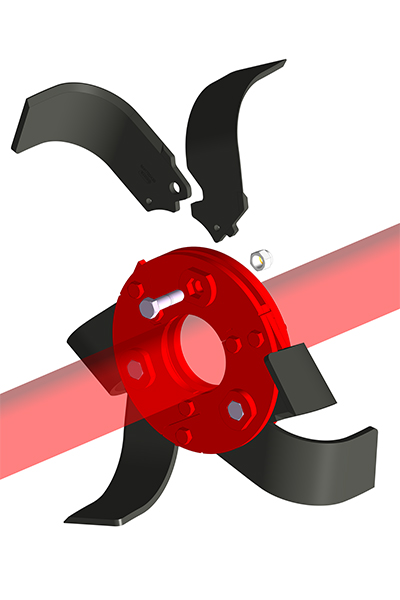

BLADE QUICK RELEASE

The new patented MASCHIO GASPARDO quick release system makes it possible to replace two blades thanks to the release of a single screw.

PANTERA L

TECHNICAL DATA

Measure	420	470
Min power HP	190 HP	210 HP
Max power HP	320 HP	320 HP
Working width	13.98 ft	15.68 ft
Transport width	7.12 ft	7.12 ft
N. of blades	96	108
Working depth	10.63 in	10.63 in
Weight	≥ 7,054.79 lb	≥ 7,226.75 lb

STANDARD DOTATION

Universal 3-point hitch, cat. II^ and III^ Central fix PTO shaft and cam clutch side PTOs Double side gear drive in oil bath Heavy duty spherical roller bearings Rotor bearing support with amphibious mechanical seals Swinging front hitches 6 blades per flange (side blades are always mounted inwards) Scraper blade, one for each flank Anti-clogging ready Two hydraulic adjusters for folding units liftings Bonnet spring adjusters Hydraulic roller side adjusters Reinforced rear levellers Drive cover side protections Anti-wear skids Central eradicator CE safety protections Rear central lighting kit Side track-eradicators ready

PANTERA L RAPIDO

TECHNICAL DATA

Measure	420	470
Min power HP	190 HP	210 HP
Max power HP	320 HP	320 HP
Working width	13.98 ft	15.68 ft
Transport width	7.12 ft	7.12 ft
N. of blades	96	108
Working depth	10.63 in	10.63 in
Weight	≥ 7,054.79 lb	≥ 7,275.25 lb

STANDARD DOTATION

Universal 3-point hitch, cat. II^ and III^ Central fix PTO shaft and cam clutch side PTOs Double side gear drive in oil bath Heavy duty spherical roller bearings Rotor bearing support with amphibious mechanical seals Swinging front hitches 6 blades per flange (side blades are always mounted outwards) Quick-fit system with counterflanges Scraper blade, one for each flank Anti-clogging ready Two hydraulic adjusters for folding units liftings Bonnet spring adjusters Hydraulic roller side adjusters Reinforced rear levellers Drive cover side protections Anti-wear skids Central eradicator CE safety protections Rear central lighting kit Side track-eradicators ready

PANTERA L REVERSE

TECHNICAL DATA

Measure	420	470
Min power HP	190 HP	210 HP
Max power HP	320 HP	320 HP
Working width	13.98 ft	15.68 ft
Transport width	7.12 ft	7.12 ft
N. of blades	96	108
Working depth	10.63 in	10.63 in
Weight	≥ 5,665.88 lb	≥ 7,524.38 lb

STANDARD DOTATION
