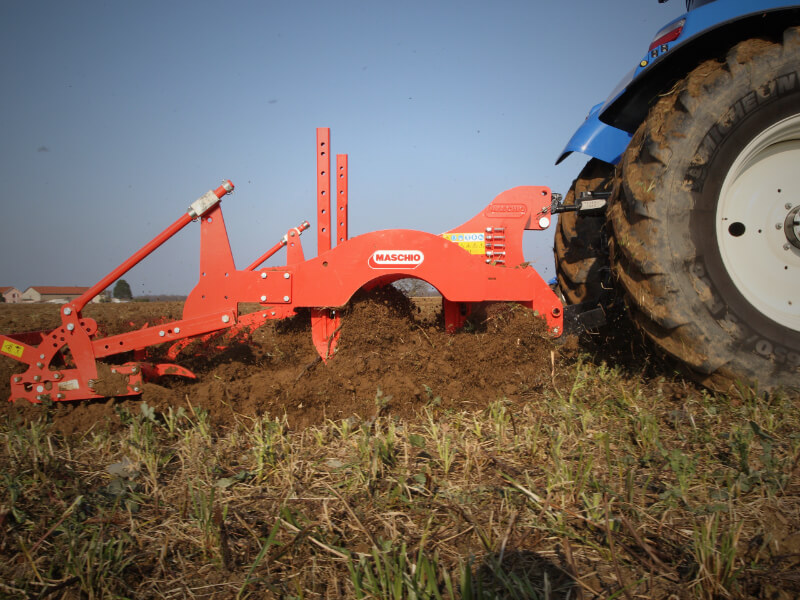

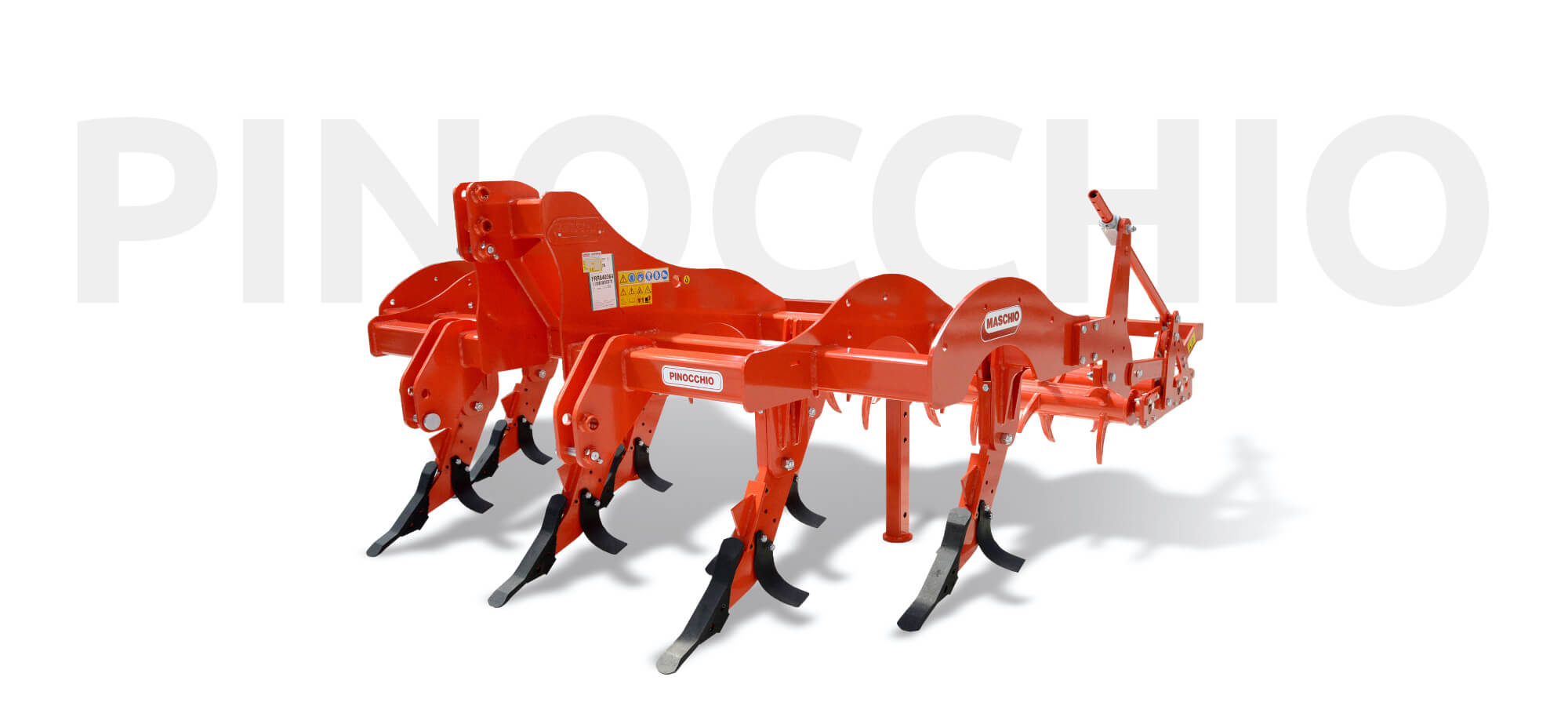

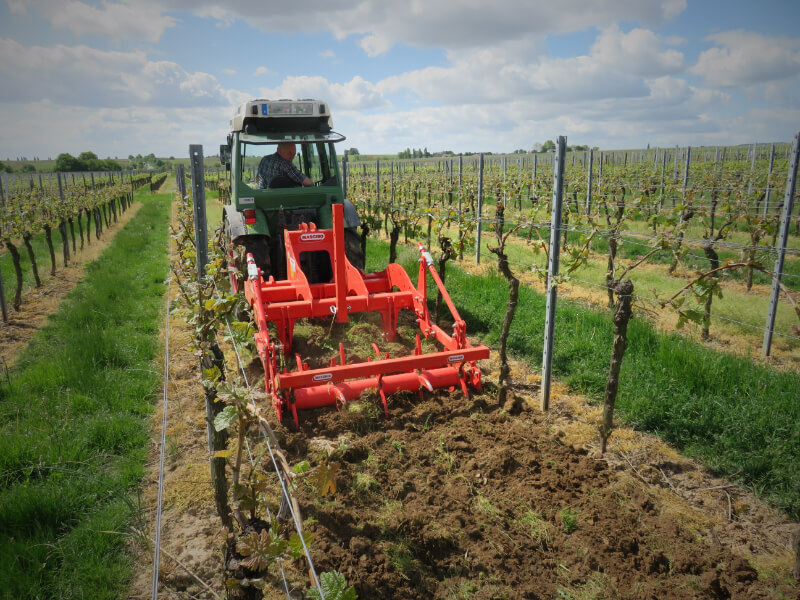

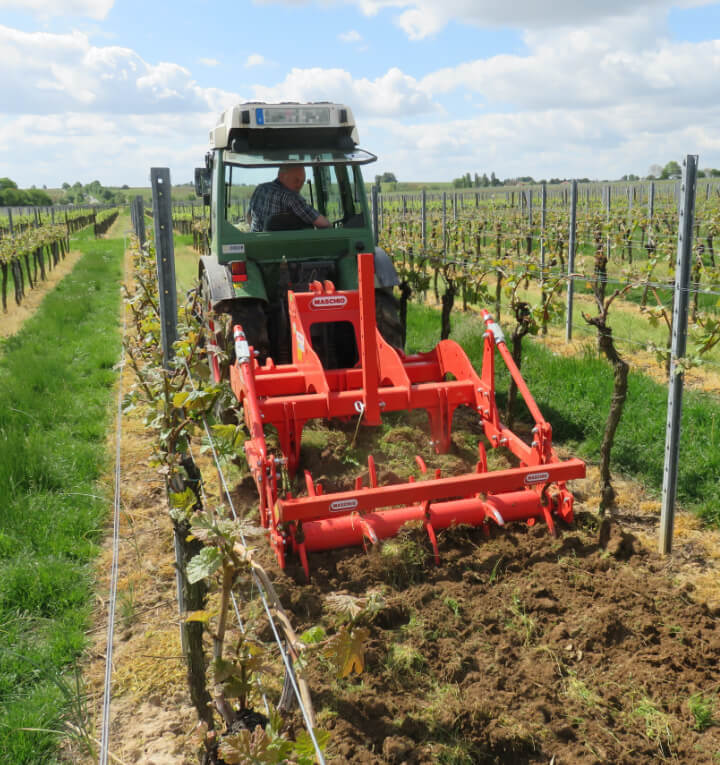

PINOCCHIO is the entry-level product in MASCHIO GASPARDO subsoiler range. Designed for tractor 50 & above hp. It is ideal for medium-small specialist businesses and farms with narrow row spacing (vineyards and orchards).

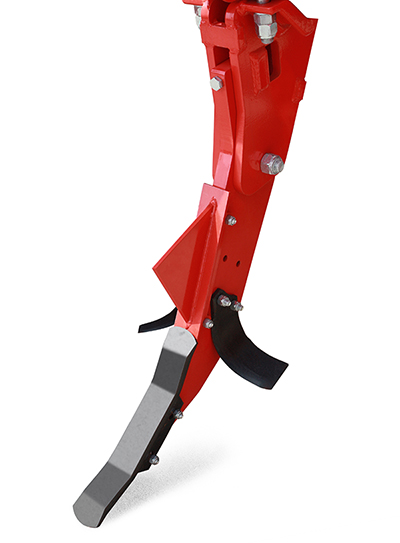

The number of tines are 3. Tines are fitted on mounts welded to the frame, each 30 mm thick and depth up to 45 cm. The combination of tines and tips with a tungsten coating ensures high performance.
To work safely, tines have a shear bolt, which allows the shaft to swing up, avoiding possible damage to the tine and frame. Working depth is adjusted by means of the rear twin spike roller, which is tasked with incorporating surface stubble into the soil.

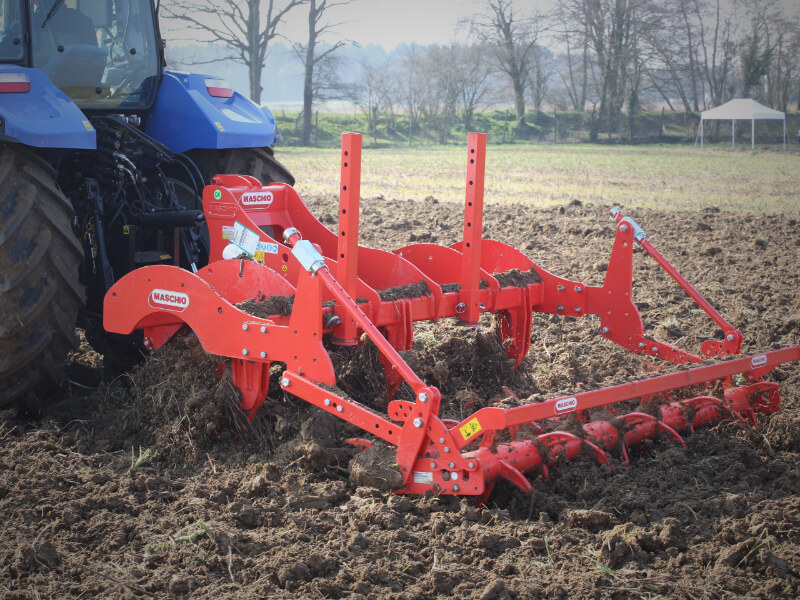

PINOCCHIO mounts a twin spike roller that both ensures the soil that has just been ripped up is broken down perfectly to a fine tilth and incorporates crop residue in the top 15-20 cm of soil. With loose soil, the ground can be prepared for sowing in a single pass.

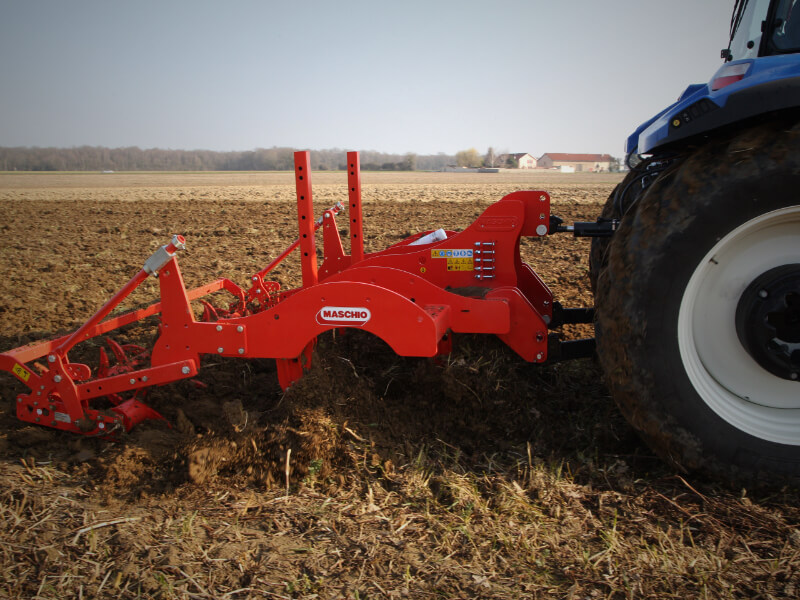

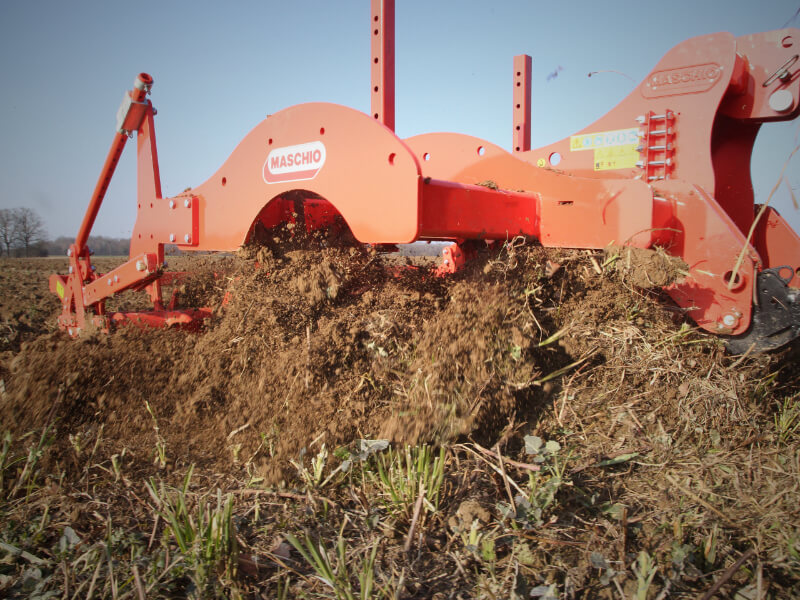

The progressively angled tines penetrate the ground gradually, going as deep as 55 cm with low power requirements and moderate fuel consumption.

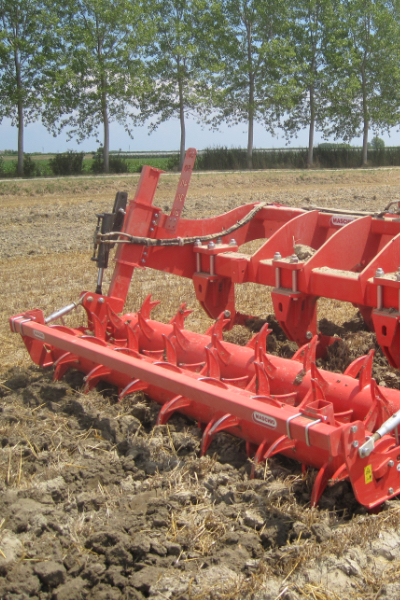

The mechanically or hydraulically adjustable twin spike roller allows for excellent soil finishing and incorporation of crop residue, keeping soil fertility high.
The counter-rotation of the spikes means clods of earth on the surface are broken up, facilitating subsequent finishing operations. None of which involves putting extra strain on the tractor.

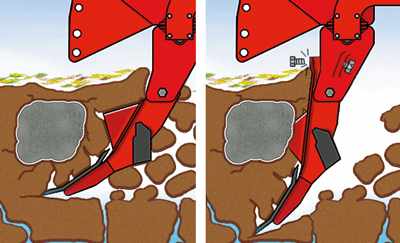

When the maximum load is exceeded, the bolt shears, allowing the tine to rise, thus avoiding possible damage to the tine and the frame.

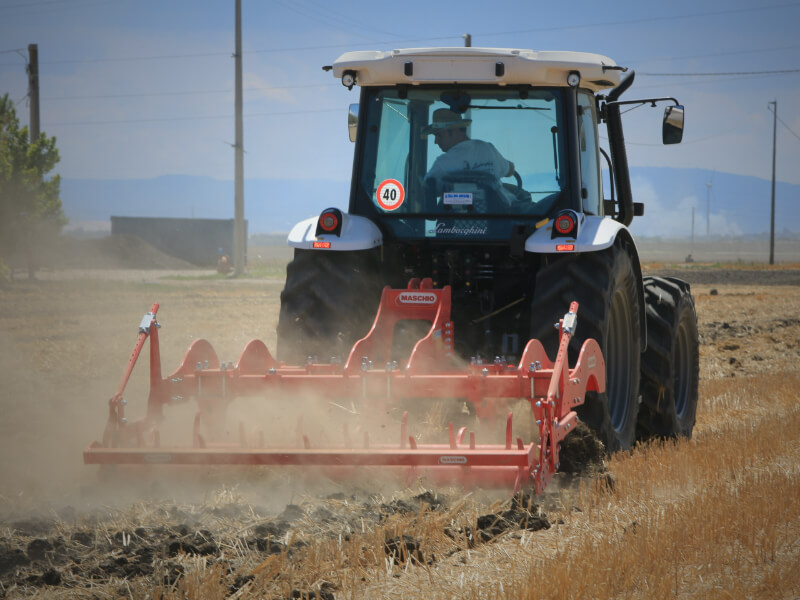

The Maschio subsoiler let you finish three different jobs in one pass, decreasing your fuel costs: soil shattering (to a depth up to 45cm), mulching and levlling. The heavy duty frame features a simple, robust design with few parts exposed towear and grease points to drastically reduce maintainance time and cost.Large range of working width and high working speed ensure high productivity; which means a fast return on your investment.
| Measure | 130/3 | 200/5 | 250/5 | 250/7 | 300/7 |
| Min power HP | 50 HP | 70 HP | 70 HP | 100 HP | 100 HP |
| Max power HP | 110 HP | 130 HP | 130 HP | 160 HP | 160 HP |
| Working width | 1,3 m | 2 m | 2,5 m | 2,5 m | 3 m |
| Transport width | 1,48 m | 2,17 m | 2,55 m | 2,55 m | 3 m |
| N. of tines | 3 | 5 | 5 | 7 | 7 |
| Working depth | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm |
| Weight | ≥ 766 kg | ≥ 1.036 kg | ≥ 1.100 kg | ≥ 1.170 kg | ≥ 1.310 kg |
