PITAGORA

Square baler

PITAGORA is the square baler by MASCHIO GASPARDO. Versatile, reliable and easy to use, it has been designed to guarantee low running costs and maximum productivity. Available in two versions according to the width of the pick-up and three types of binding, it can be coupled to tractors of up to 45 HP

Download the brochure

PITAGORA

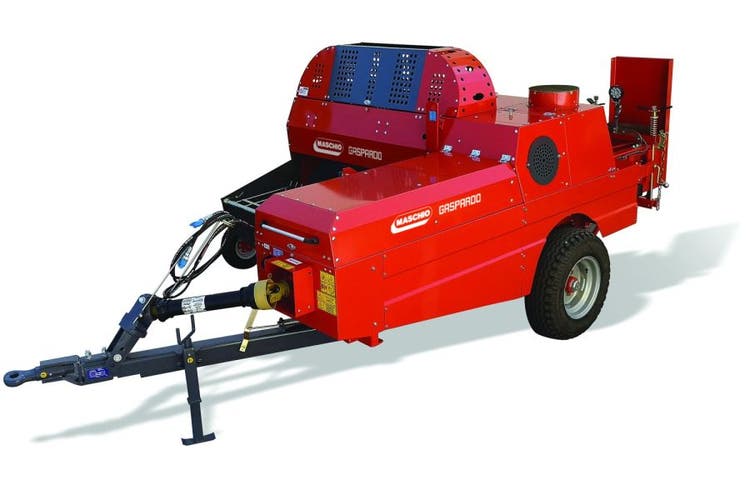

PITAGORA

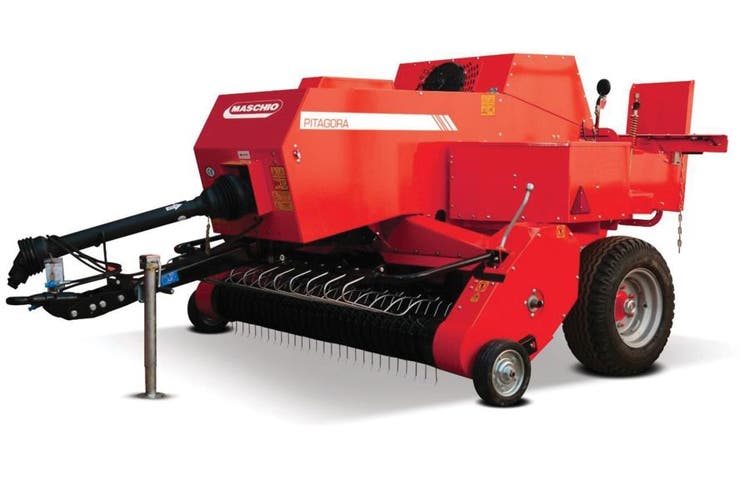

PITAGORA IN LINE

Pick-up width

5.41-6.33 ft

Bale length

0.98-4.43 ft

PITAGORA is built on a proven and reliable baling and tying system. The wide pick-up, adjustable hydraulically, measures up to 70.5 inches in width and ensures a steady crop flow. Its dual feeder fork system, combined with a 93 strokes-per-minute baling mechanism, makes it suitable for handling all types of forage crops efficiently.

Three tying systems are available to suit various operational needs: twine knot, loop knot (American style), or wire binding. Large cast-iron needles provide precise cutting performance, while the built-in fan system keeps the tying area clean for maximum reliability and reduced maintenance.

Technical data - PITAGORA

Technical data

Measure	Bale length	Pick-up width	N. of binders	Tying	PTO rpm	Power kW (min)	Weight
PITAGORA	0.98-4.43 ft	5.41 ft	2	Loop knot	540 std	33 kW	3,866.87 lb
PITAGORA	0.98-4.43 ft	5.41 ft	2	Wire	540 std	33 kW	3,968.28 lb
PITAGORA	0.98-4.43 ft	5.41 ft	2	String knot	540 std	33 kW	4,078.51 lb
PITAGORA L	0.98-4.43 ft	5.91 ft	2	Loop knot	540 std	33 kW	3,944.03 lb
PITAGORA L	0.98-4.43 ft	5.91 ft	2	Wire	540 std	33 kW	4,188.74 lb
PITAGORA L	0.98-4.43 ft	5.91 ft	2	String knot	540 std	33 kW	4,166.69 lb

Standard Equipment - PITAGORA

TRANSMISSION
Double cardan shaft

FEEDING SYSTEM
2 Pick-up width available
Double feeder forks

TYING SYSTEM
Double knotter with string knot binding set
Knotter cleaning fan
Capacity of 6 twine rolls

FRAME
Hydraulic pick-up adjustment
Bale counter
Third rear support wheel
Led lights for night work
«CE» protections

Technical data - PITAGORA IN LINE

Technical data

Measure	Bale length	Pick-up width	N. of binders	Tying	PTO rpm	Power kW (min)	Weight
PITAGORA L	0.98-4.43 ft	6.33 ft	2	String knot	540 std	33 kW	4,409.2 lb

Standard Equipment - PITAGORA IN LINE

TRANSMISSION
Double cardan shaft

FEEDING SYSTEM
2 Pick-up width available
Double feeder forks
Center feeder fork

TYING SYSTEM
Double knotter with string knot binding set
Knotter cleaning fan

FRAME
Hydraulic pick-up adjustment
Bale counter
Led lights for night work
«CE» protections
