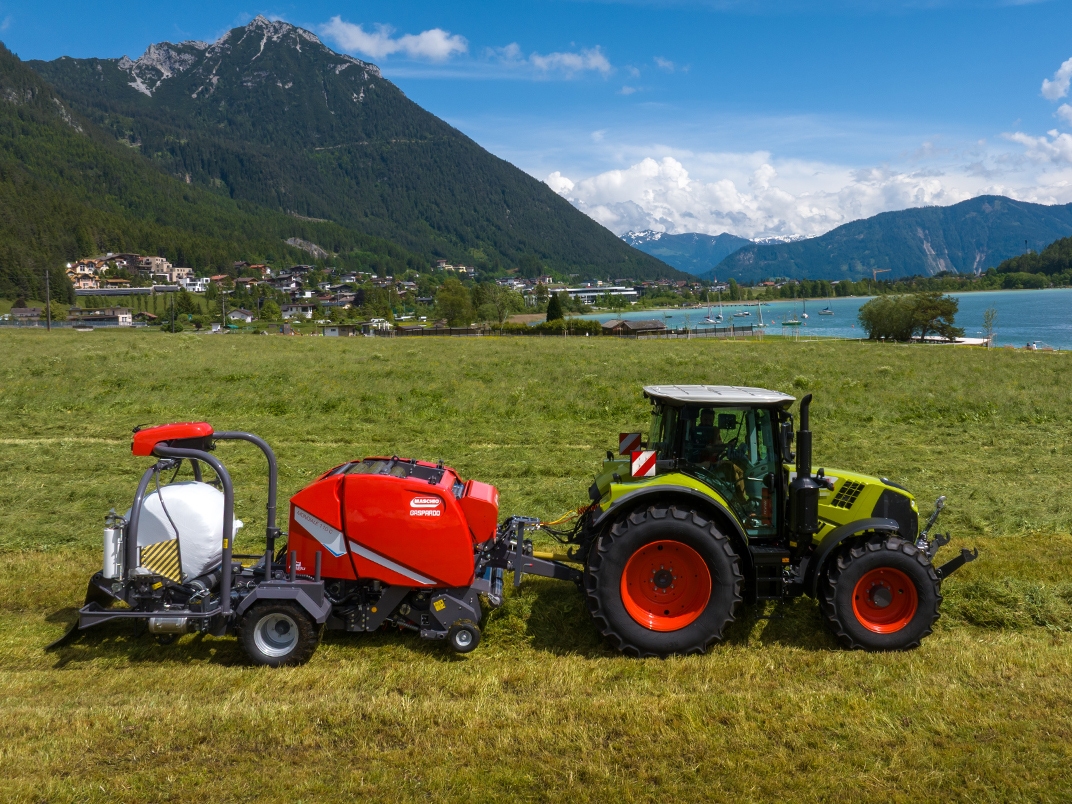

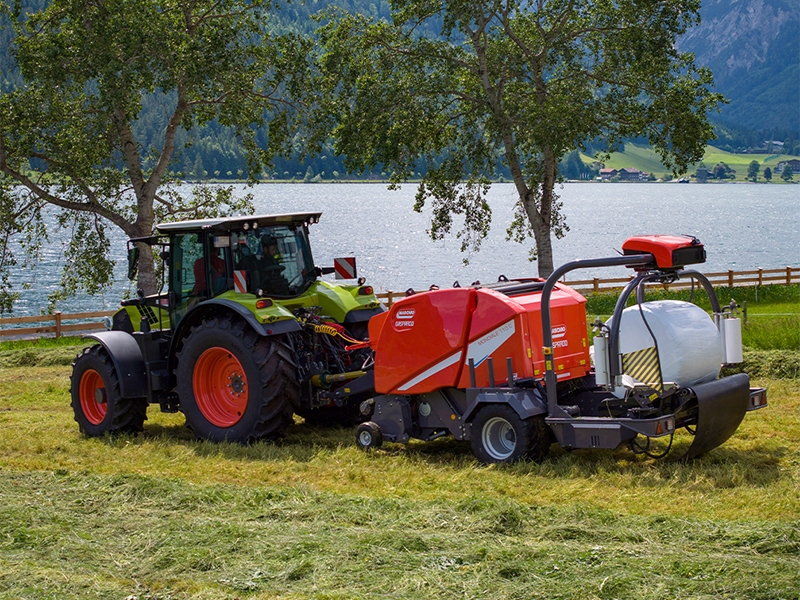

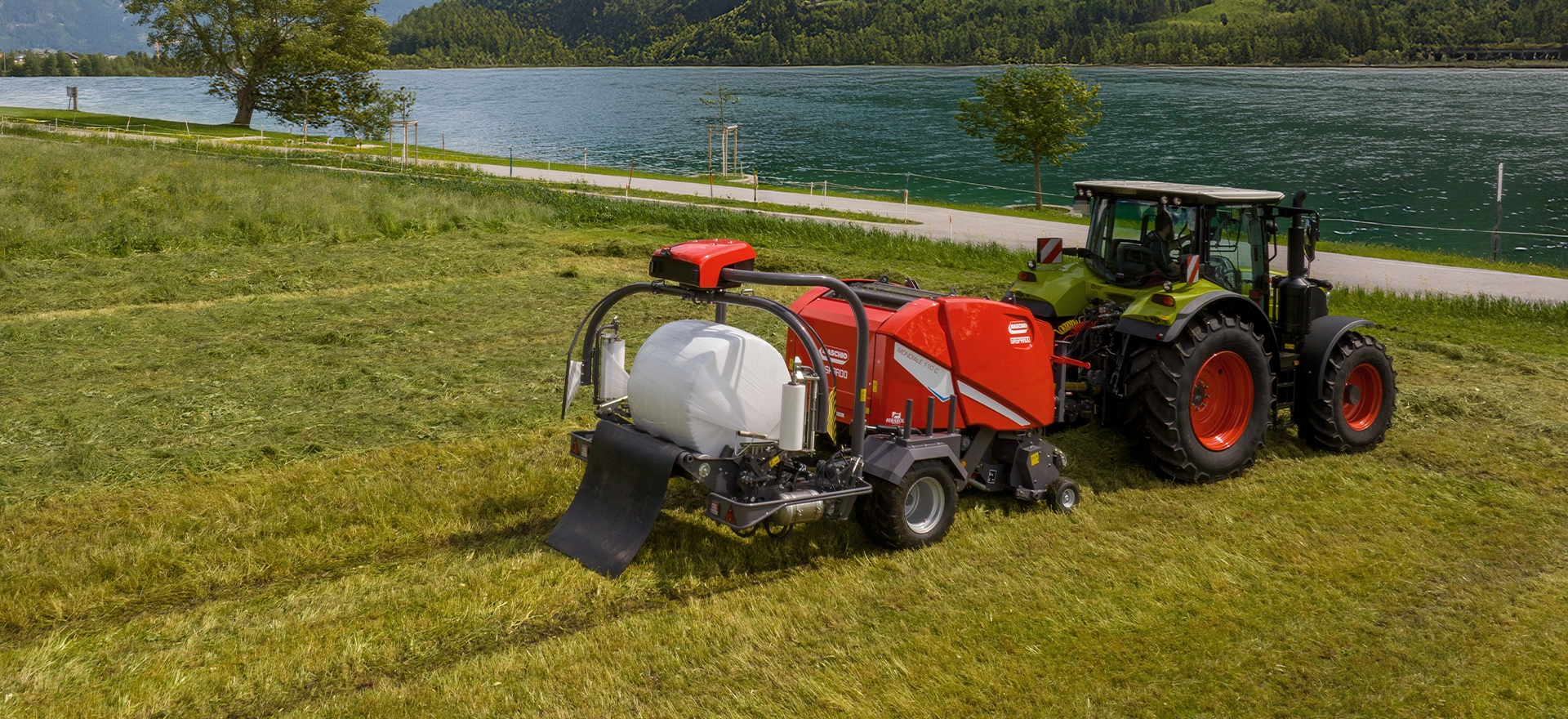

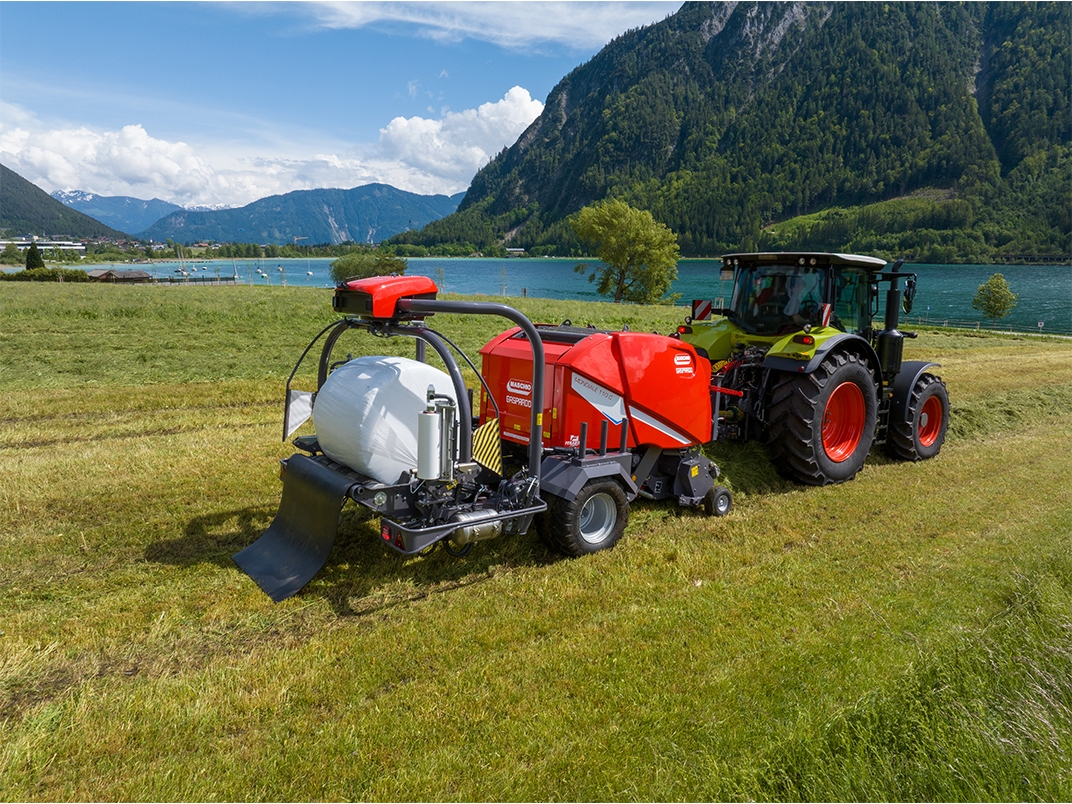

MONDIALE 110 COMBI ISOTRONIC

Combined fixed chamber round baler with rollers and rotor

MONDIALE 110 COMBI ISOTRONIC

Ø bale (min)

3.61 ft

Pick-up width

5.91 ft

N. of bars/rollers

Technical data - MONDIALE 110 COMBI ISOTRONIC

Technical data

Measure	Ø bale (min)	Bale width	Pick-up width	N. of bars/rollers	Tying	Wheels	Power kW (min)	Weight
110 HTC	1.1	1	1.8	17	Net	480/45-17	81	4280

Standard Equipment - MONDIALE 110 COMBI ISOTRONIC

TRANSMISSION
PTO 540 rpm
Homocinetic PTO shaft with bolt limiter

CONTROL GROUP
Complies with ISO 11783 standard
Multifunction electronic control unit with combined control of baler and wrapper

FEEDING SYSTEM
Pick-up 70.87 in with 4 tooth bars with fixed wheels and crop roller
Drop floor
Automatic knives cleaning system

BALE COMPRESSION SYSTEM
17 rolls fixed chamber
Hydraulic bale press

TYING SYSTEM
Net tying system

BALE KICKER
Bale discharger

WRAPPERS
Wrapper with 2 roller platform, 2 film wrappers for 19.69 in film, automatic film cutter

LUBRIFICATION
Automatic chain lubrication
Centralized manual greasing system

FRAME
Pneumatic braking system
Mechanical parking brake

Adjustable draw bar
Couple of shrinking cups
Pick-up support chains

Side roll holders (3+3 rolls)
Warning boards and LED road lights
Wheels: 600/55-26.5
Mudguards
