Seed bed precision cultivator with folding frame
GRATOR is MASCHIO GASPARDO's lightweight seedbed cultivator. Available in working widths ranging from 9.8 to 39.4 ft, it is designed to work with tractors with horsepower in the 80 to 340 range.
Seedbed cultivators are designed for minimum tillage. They are used to break up and finish the soil, while removing weeds from the top 3.9 in.
The combined action of the tools and the high work speeds (5-7.45 mph) results in excellent clod breaking and high productivity with any soil type.
GRATOR comes with two frame types: a mounted fixed frame up to 19.7 ft; or semi-mounted folding frame for 29.5 and 39.4 ft versions. The sprung tools are connected directly to the frame. The twin rear roller, which serves to break up the soil, is connected by means of mechanical jacks that are also used for depth control.
The implement folds up hydraulically to a transport width of 8.2 and 9.8 ft for mounted and semi-mounted frame versions respectively.

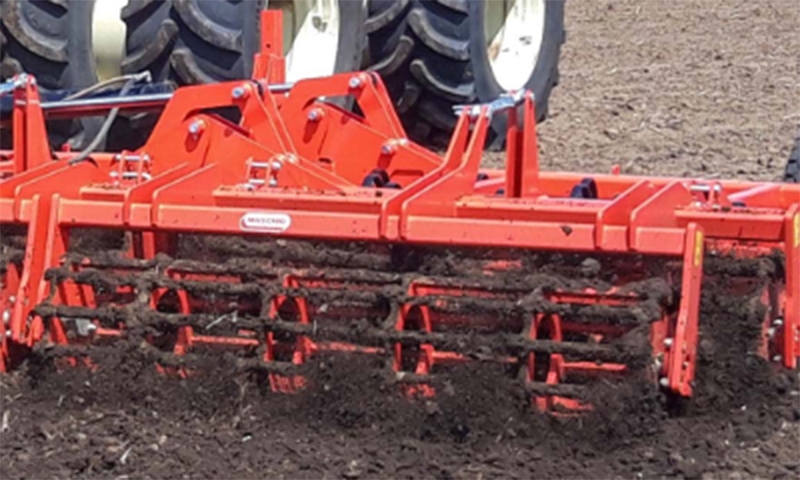

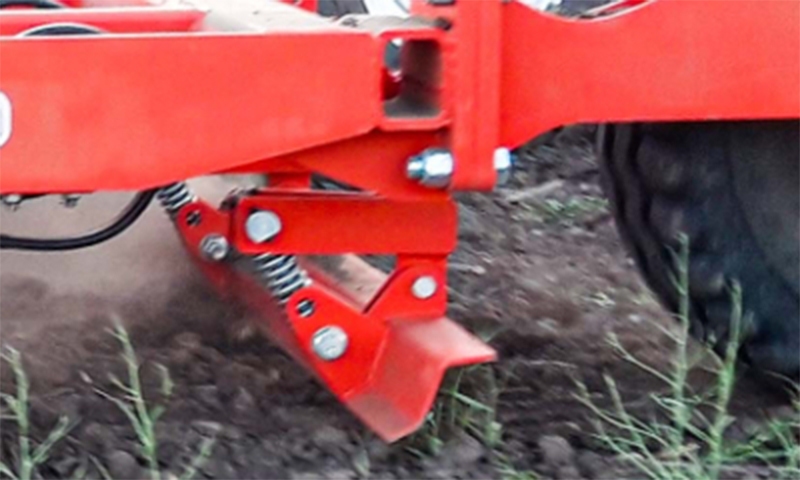

The front levelling blade levels the ground, while the spring tines in the central section break up the top 3.9 in of soil to a fine tilth. GRATOR is fitted with two types of tine. The gamma tines, which have a straight profile and narrow tip, are less aggressive on soil, loosening the surface crust without excessive mixing to retain any moisture in the soil. The delta tines, which have a curved profile and wide tip, are suitable for working on different types of soil, are more aggressive and also prove effective in pulling out any weeds.
Bringing up the rear, the twin cage roller levels the soil, preparing it for seeding.
| Measure | Working width (min) | Transport width | Springs tines | N. of springs tines | Hitch | Power required HP | Power required KW | Weight |
|---|---|---|---|---|---|---|---|---|
| 300 | 9.84 ft | 9.84 ft | Delta | 29 | 3 point cat. II^ | 79-99 hp | 59-74 kW | 2,306.01 lb |
| 300 | 9.84 ft | 9.84 ft | Gamma | 29 | 3 point cat. II^ | 79-99 hp | 59-74 kW | 2,248.69 lb |
| 450 | 14.76 ft | 8.2 ft | Delta | 45 | 3 point cat. II^ | 109-129 hp | 81-96 kW | 4,400.38 lb |
| 450 | 14.76 ft | 8.2 ft | Gamma | 45 | 3 point cat. II^ | 109-129 hp | 81-96 kW | 4,281.33 lb |
| 600 | 19.68 ft | 8.2 ft | Delta | 61 | 3 point cat. II^ | 138-168 hp | 103-125 kW | 5,304.27 lb |
| 600 | 19.68 ft | 8.2 ft | Gamma | 61 | 3 point cat. II^ | 138-168 hp | 103-125 kW | 5,731.96 lb |
| 900 | 29.53 ft | 11.48 ft | Delta | 91 | Drawbar | 227-247 hp | 169-184 kW | 15,564.48 lb |
| 900 | 29.53 ft | 11.48 ft | Gamma | 91 | Drawbar | 227-247 hp | 169-184 kW | 17,791.12 lb |
| 1200 | 39.37 ft | 11.48 ft | Delta | 121 | Drawbar | 306-335 hp | 228-250 kW | 20,639.47 lb |
| 1200 | 39.37 ft | 11.48 ft | Gamma | 121 | Drawbar | 306-335 hp | 228-250 kW | 20,370.5 lb |
TRACTOR CONNECTION
3 point hitch cat. II^ (measures 300-450-600)
Towbar with 2 point bar cat. III^ and IV^ (measures 900-1200)
FRAME
Fixed frame (measure 300)
Folding frame (measures 450-600-900-1200)

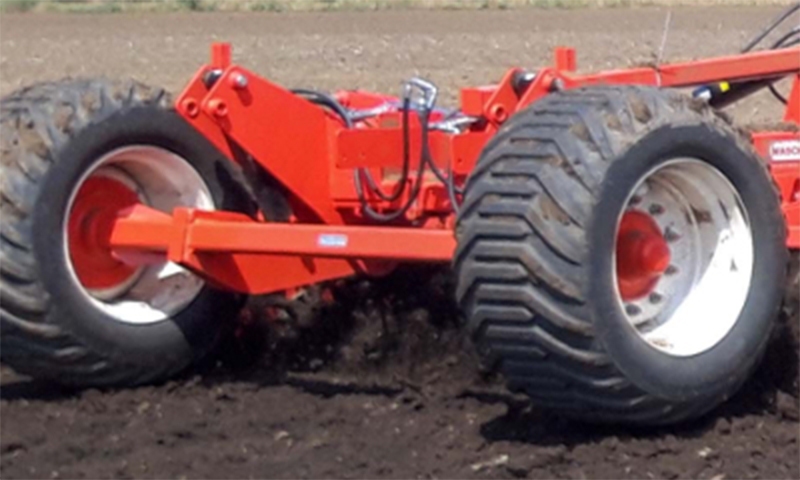

Transport cart (measures 900-1200)
Depth wheel (measures 900-1200)
Warning boards and road lights
WORKING BODIES
Adjustable rear bar
4 rows of spring operator elements
Rear shredding blade roller with adjustable working pressure Ø420 mm
Compaction cage roller:
• Ø11.8 in. diameter (measures 300-450-600)
• Ø15.7 in. diameter (measures 900-1200)
ADJUSTMENTS
Mechanical depth adjustment
Nitrogen-charged hydraulic system (measure 1200)
