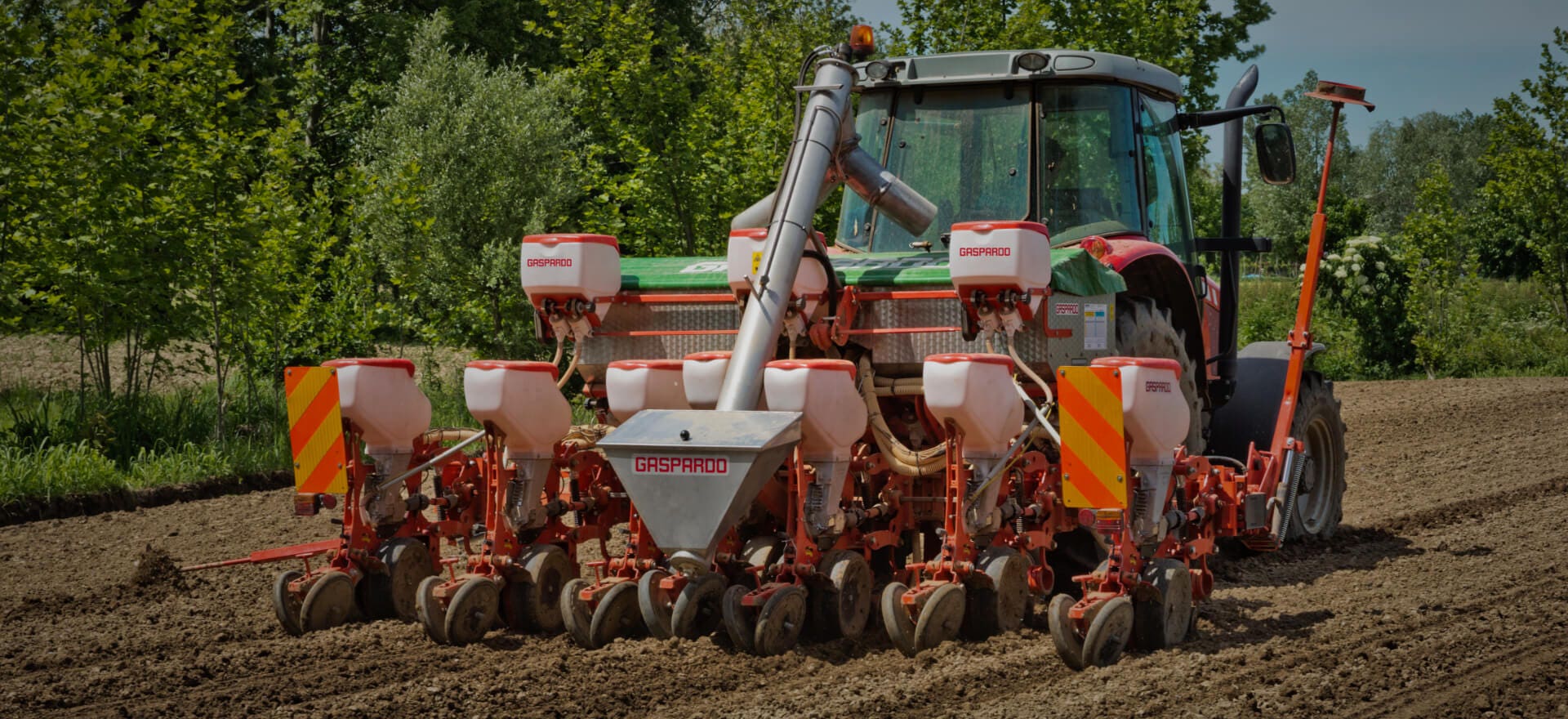

Mounted pneumatic precision planter with telescopic closure frame
MARTA precision planter fits within the category of MTR range telescopic frames. Thanks to over ten years’ experience in the precision planter sector and the versatility of MTR unit capable of planting in conditions of both fine and minimally tilled soils, MARTA model offers 6-row versions with 75 or 7-row with 60 inter-row spacing, ideal for planting crops such as corn, sunflower and soy.
MTR planting unit is characterised by high-level structural solutions such as the sturdy double parallelogram connection system with adjustable load spring, double disc coulter, independent rocker depth wheels, distributor body made in cast aluminium and large 36 l capacity hopper.

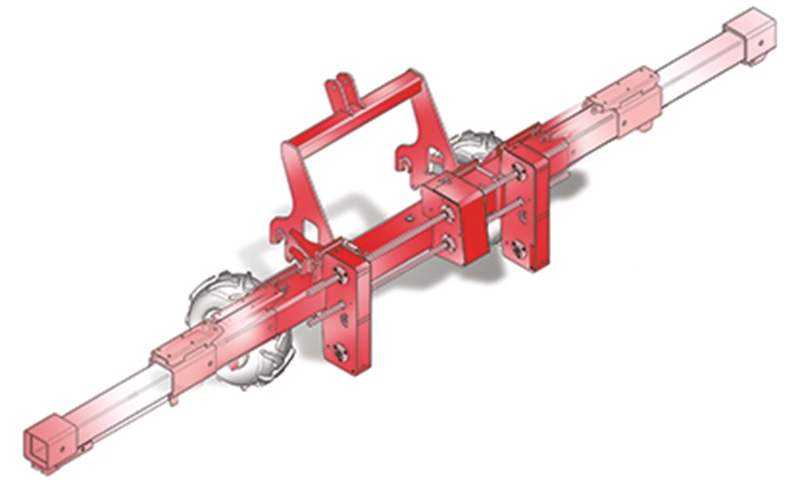

MTR planting unit is coupled to the frame with two hydraulically operated telescopic extensions which ensure road widths of 2.5 and 3 meters depending on the version. These reduced dimensions are made possible by the transmission wheels in the front position which also allow to avoid the risk of jamming with stones and stones.
The mechanical transmission is based on the renowned homokinetic joint system which requires no maintenance. Thanks to an electromechanical system, the transmission of each unit can be conveniently interrupted thanks to the quick release exclusion of the cardan shaft or by command, allowing in this case the control of the sections.
To increase versatility and reduce the number of passes in the field, various configurations are available that can be combined with microgranulator and fertilizer spreader, the latter with a suffolk or double disc coulter.
MARTA is the ideal machine for those looking for a planter for planting crops with wide spacing in areas with narrow or low-access road routes.
| N. of rows | Inter-row | Fertilizer | Fertilizer hopper | Total width | Frame length | Frame section | N. of wheels | Wheel position | Wheels | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 75 cm | - | - | 2.55 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,150 kg |
| 6 | 75 cm | - | - | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,280 kg |
| 7 | 50 cm | - | - | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,390 kg |
| N. of rows | Inter-row | Fertilizer | Fertilizer hopper | Total width | Frame length | Frame section | N. of wheels | Wheel position | Wheels | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 75 cm | - | - | 2.55 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,240 kg |
| 6 | 75 cm | - | - | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,370 kg |
| 7 | 50 cm | - | - | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,480 kg |
| N. of rows | Inter-row | Fertilizer | Fertilizer hopper | Total width | Frame length | Frame section | N. of wheels | Wheel position | Wheels | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 75 cm | BBS metal | 1x1200 l | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,460 kg |
| 6 | 75 cm | BB stainless steel | 1x850 l | 2.55 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,310 kg |
| N. of rows | Inter-row | Fertilizer | Fertilizer hopper | Total width | Frame length | Frame section | N. of wheels | Wheel position | Wheels | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 75 cm | BBS metal | 1x1200 l | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,460 kg |
| 6 | 75 cm | BB stainless steel | 1x850 l | 2.55 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,310 kg |
| N. of rows | Inter-row | Fertilizer | Fertilizer hopper | Total width | Frame length | Frame section | N. of wheels | Wheel position | Wheels | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 75 cm | BBS metal | 1x1200 l | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,550 kg |
| 6 | 75 cm | BB stainless steel | 1x850 l | 2.55 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,400 kg |
| N. of rows | Inter-row | Fertilizer | Fertilizer hopper | Total width | Frame length | Frame section | N. of wheels | Wheel position | Wheels | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 75 cm | BBS metal | 1x1200 l | 3 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,550 kg |
| 6 | 75 cm | BB stainless steel | 1x850 l | 2.55 m | 4 m | 150x150 mm | 2 | Front | 20/8.00-10 | 1,400 kg |
TRACTOR CONNECTION
3 point hitch with 1st and 2nd oscillating points cat. II^
TRANSMISSION
PTO 540 rpm
B1 Z6-Z6 PTO shaft
Double transmission gearbox
FRAME
Hydraulic row marker, trace on wheel (with Ø320 mm disc) (central tractor trace on request)
Vacuum gauge
Warning boards and road lights (disassembled)
MTR SEEDING UNIT
Capacity 36 l
Mechanical transmission
Front clod breaker
1 standard seed plate each row (specify seed type)
V-shaped rubber press wheels 2"x13"
MICROGRANULATOR (where present)
Capacity 16 l
Mechanical transmission
FERTILIZER (where present)
Capacity BBS 1200 l
Capacity BBX 850 l
Centralized SPEEDY SET adjustment for MINIMAX fertilizer meters
Pneumatic fertilizer kit
Double disc coulter or suffolk coulter
Hopper windows for fertilizer level control
