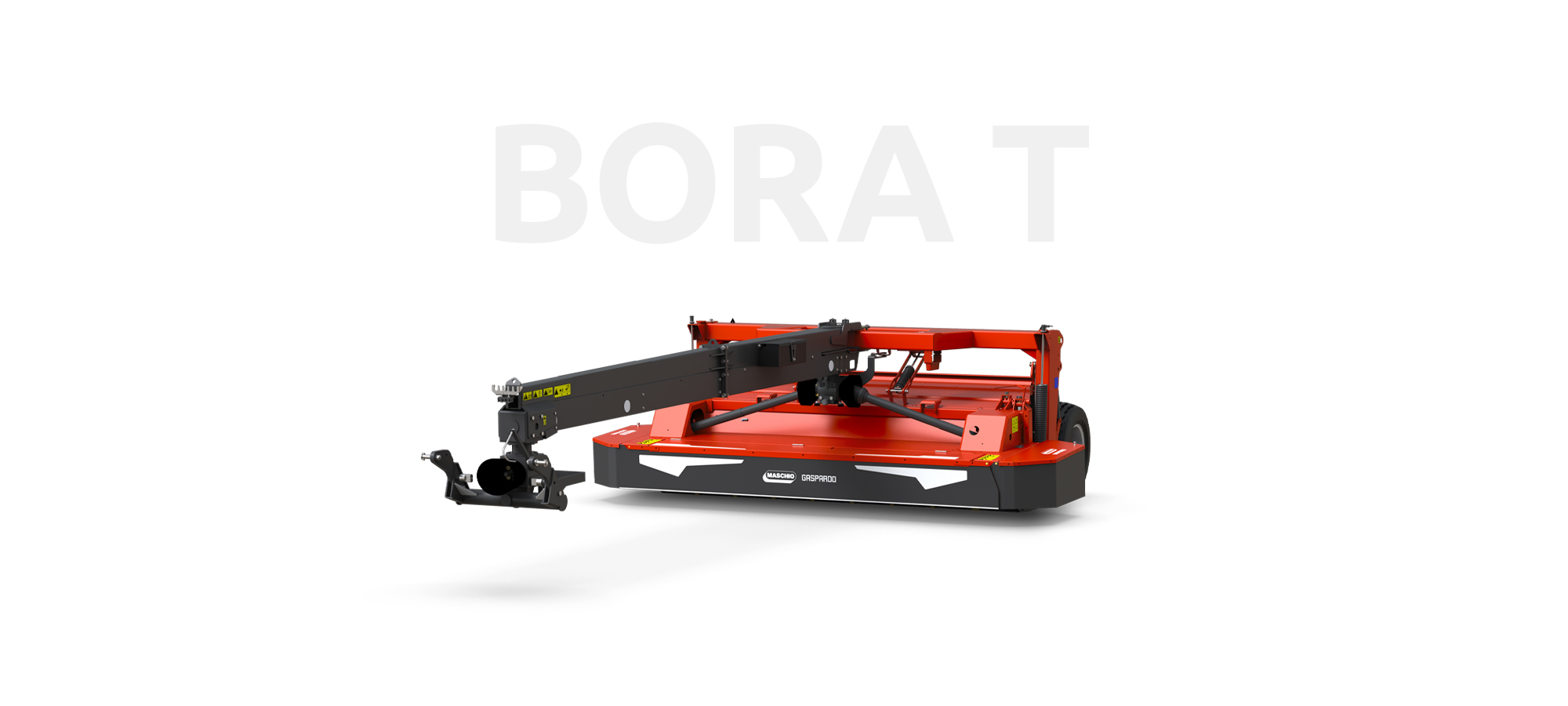

BORA T

Trailed Disc Mower

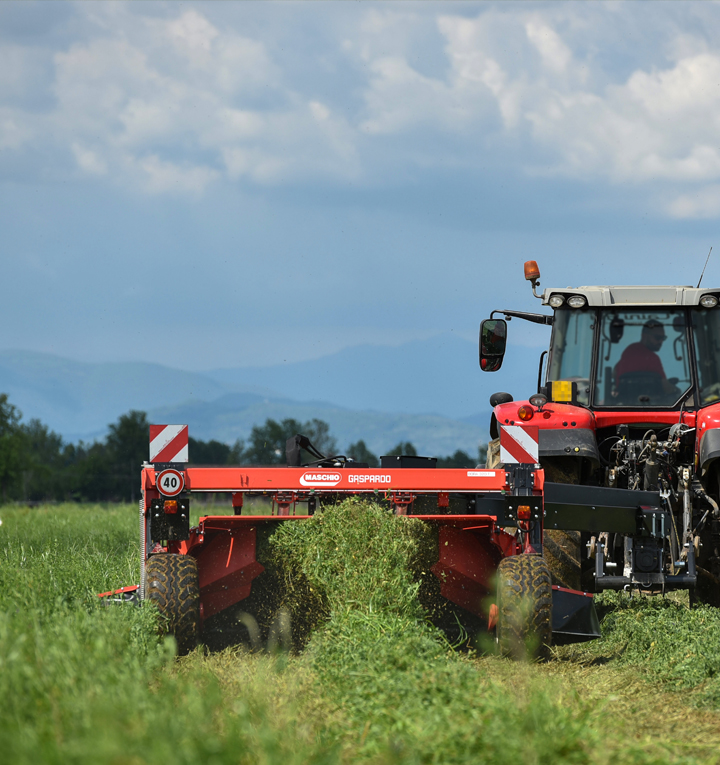

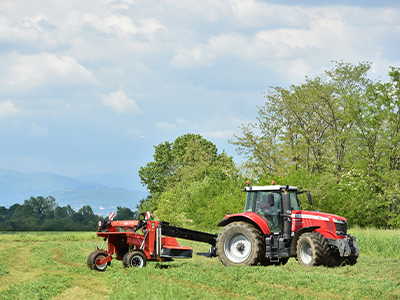

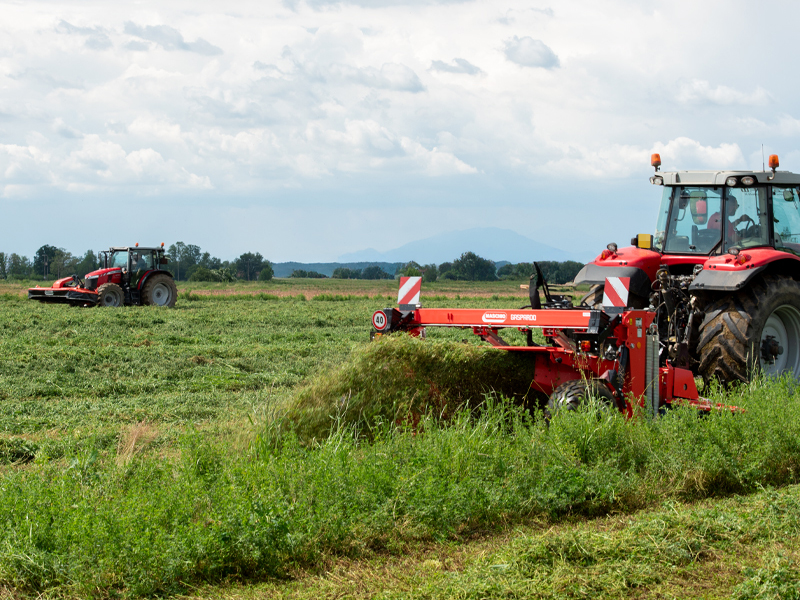

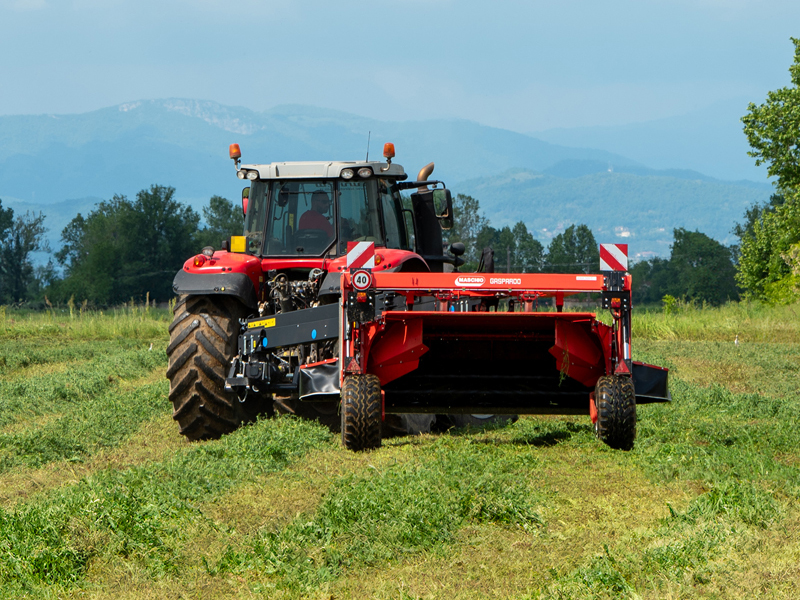

The trailed version of BORA is a lightweight mower, suitable for use even with smaller-sized vehicles, reducing fuel consumption and soil compaction. Its central drawbar system, adjustable to both sides, allows precise positioning of the cutting bar exactly where needed. Thanks to its advanced suspension, the cutting bar remains light and responsive on the ground, accurately following the terrain profile even at high speeds. The working width ranges from 3.11 to 3.52 meters, with a choice of two types of conditioners. Road transport is easy and safe, as the mower can quickly switch from working position to transport position in just a few moments.

Power required

95 - 102 HP

Working width

3,11 - 3,52 m

Swath width

1,2 - 2,2 m

Number of knives

16 - 18

Cutting bar with low profile

The new cutter bar features a completely flat bottom and a low-profile design, with adjustable cutting height down to 10 cm. This ensures constant protection of the grass cover by reducing contact pressure during mowing and promoting faster plant regrowth for subsequent cuts.

Discs with quick release of the knives

Thanks to the practical and fast blade replacement system, BORA T minimizes repair downtime, allowing mowing operations to resume quickly. Each blade's optimized inclination ensures a clean and precise cut, preserving the product and preventing contamination, even when working with lodged crops.

Simple and reduced maintenance

In the event of a disc colliding with an obstacle, the ShockPRO™ hubs with built-in protection are designed to break intentionally to safeguard the cutter bar's drive system. This system securely holds the entire mechanism, allowing for a quick stop and easy replacement of the damaged hub, minimizing costs and downtime.

Safe + Collision Protection

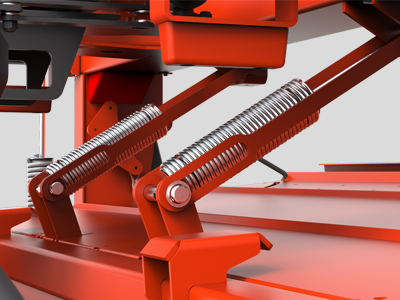

When working on rocky terrain, the SAFE+ safety system delivers excellent performance. In the event of contact with stones or protruding obstacles, the cutter bar automatically lifts to prevent dangerous collisions and reduce the risk of damage, extending the machine's lifespan. The system’s sensitivity is easily adjustable via two springs, enabling the mower to adapt to the terrain and maintain a uniform cutting height, promoting regrowth. Additionally, SAFE+ operates independently of ground pressure, ensuring maximum efficiency and uncompromised protection.

Special contents

CONDITIONER OPTIONS

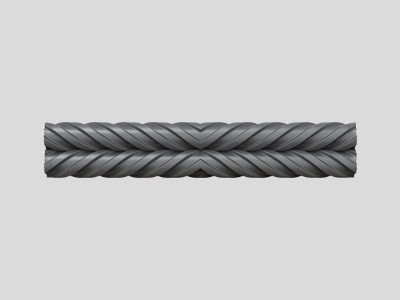

Conditioning is crucial for breaking the wax layer that helps the plant retain moisture, thus reducing evapotranspiration. Selecting the most suitable solution for each crop is essential: for crops rich in stems, a flail conditioner is ideal for breaking and bending. On the other hand, rubber rollers are better suited for delicate and voluminous crops, rich in leaves. In this case, the rollers gently press the crop without breaking it.

HIGH MANEUVERABILITY

The hydraulic lift system for field ends, combined with the 360° gearbox, ensures exceptionally smooth and quick maneuvers at field boundaries. Designed for tight turns, the gearbox can rotate up to 90° relative to the drawbar, providing precision without causing vibrations.

ADJUSTABLE CUTTING HEIGHT

The machine features an adjustable cutting height bar. This adjustment can be carried out easily and quickly using a dedicated tool. The cutting height ranges from 2.5 to 10 cm and can be increased by 3 cm using skids.

Why choose BORA T

Trailed mower characterized by high productivity and good working speed.

BORA T

TECHNICAL DATA

Measure	320 RRC	320 SFC	360 RRC	360 SFC
Min power HP	95 HP	95 HP	102 HP	102 HP
Working width	3,11 m	3,11 m	3,52 m	3,52 m
Swath width min	1,2 m	1,2 m	1,2 m	1,2 m
Swath width max	2 m	2 m	2,2 m	2,2 m
Transport width	3 m	3 m	3,4 m	3,4 m
N. of discs	8	8	9	9
N. of blades	16	16	18	18
Conditioner	Rubber roller conditioner	Steel flails conditioner	Rubber roller conditioner	Steel flails conditioner
PTO rotation rpm	1000 std	1000 std	1000 std	1000 std
Weight	2.780 kg	2.730 kg	2.940 kg	2.890 kg

STANDARD DOTATION

PTO 1000 rpm PTO shaft with slip clutch (tractor side yoke 1" 3/8 Z6) Central tow bar Spring suspension SAFE+' collision safety system, consisting of 4 side springs, 2 upper springs, and an adjustable tow bar extension Adjustment of "SAFE+" by adjusting the upper springs Ground pressure adjustment by adjusting the side springs Hydraulic conversion to transport position Hydraulic end-field lifting system Low-profile cutting bar with Q+ discs for chassis Long-lasting Q+ discs with quick release of knives Helical knives Counter-knives Rotation of centrally conveyed discs Outer discs equipped with cylindrical rotor "Easy-Dry" system: manual spreading width adjustment Adjustable cutting height from 25 to 100 mm, with raised slides, the cutting height can be increased by 30 mm Wheels 380/55-17 FL+ located inside the frame Top Service Design, possibility to check and replace gear wheel and bearing on each disc Required distributors: 1 single effect, 1 double effect VERSION RRC Rubber roller conditioner Roller synchronizer Manual adjustment of the conditioning level VERSION SFC Conditioner with Y-shaped steel tines Manual adjustment of the conditioning level
