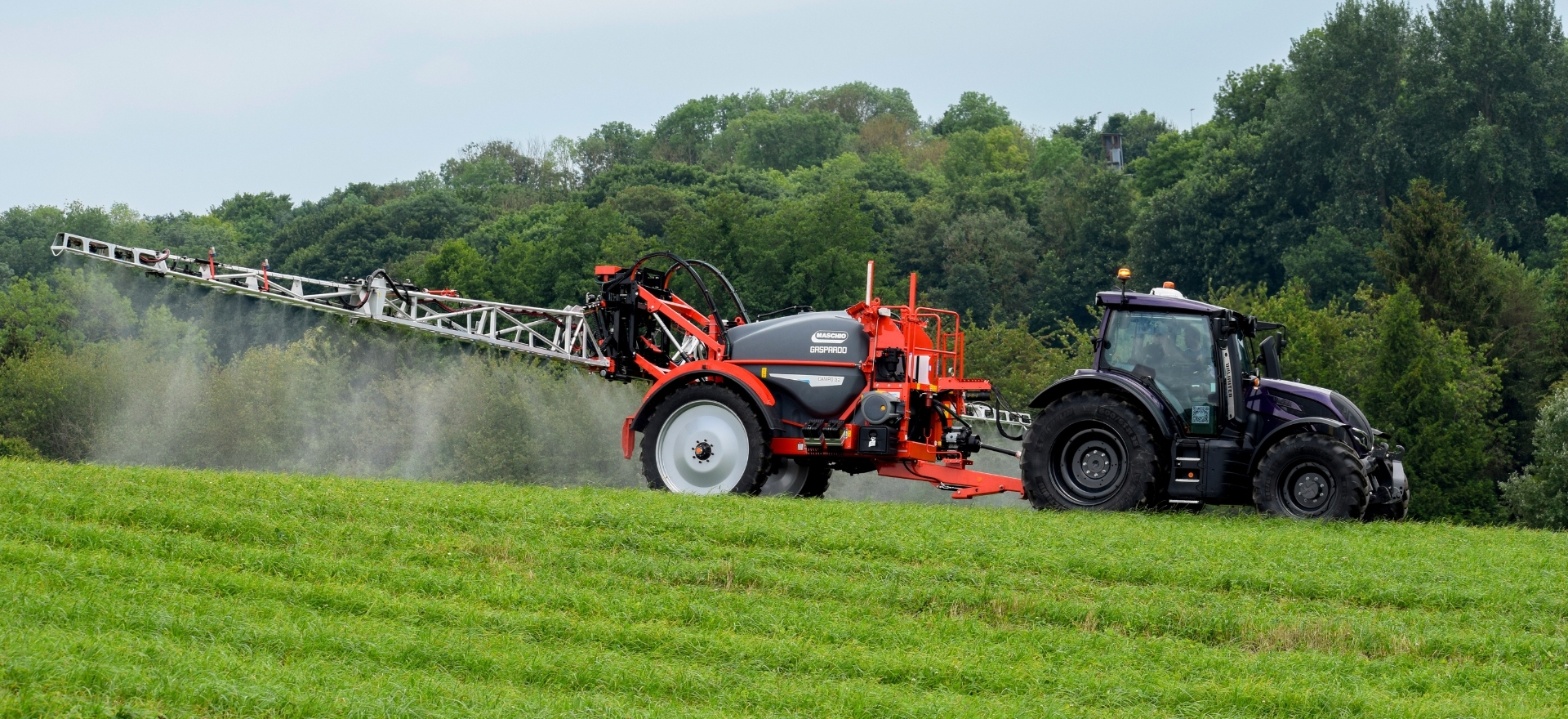

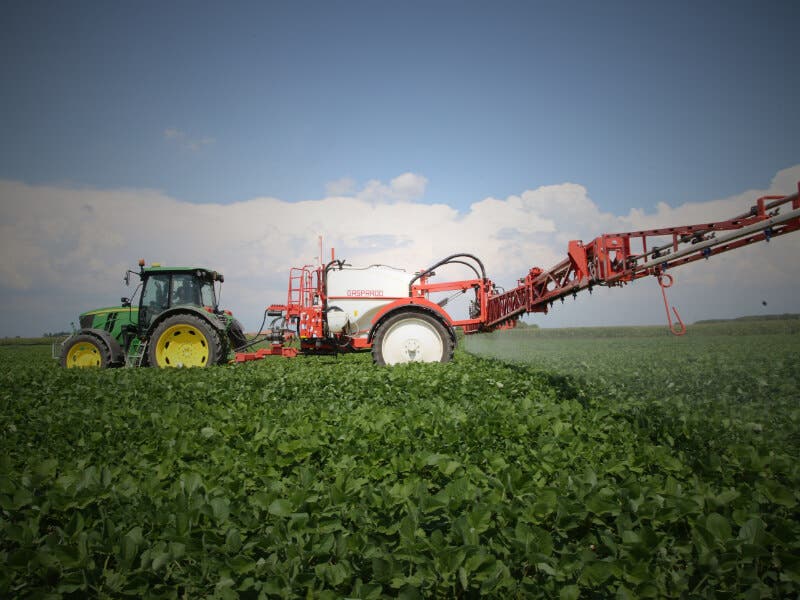

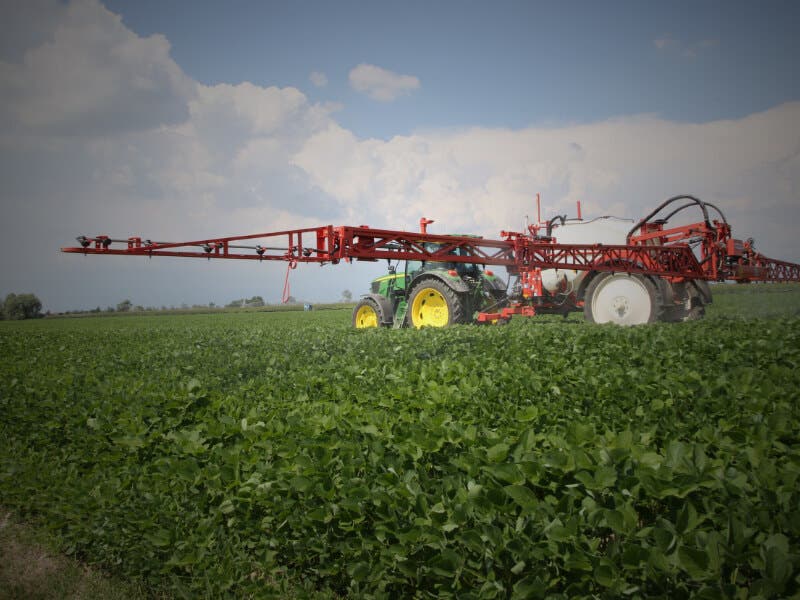

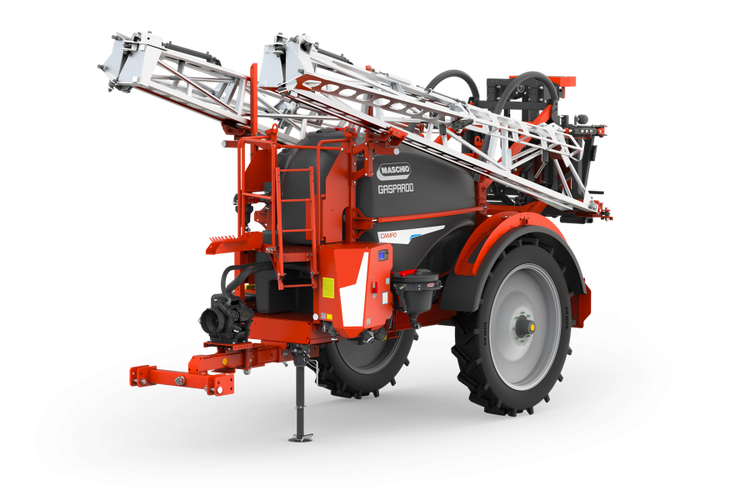

CAMPO ULTRA ISOTRONIC 22-32

FRAME

Cataphoresis painted frame with stepladder and platform

Square axle 100 mm with adjustable wheelbase and track (min 1800 - max 2250)

Pneumatic braking system

180° mudguards

Hydraulic stabilizing foot (1 pair of quick hitches on the tractor needed)

Right side product holder

Additional product holder

Led lights for night work

Rigid drawbar

Towing eye 50 mm

TANK GROUP

Facilitated polyethylene tank emptying

Hinged lid with bayonet joint

Washing circuit system with independent tank (capacity 480 liters)

2 circuit rinse rotating jets

Handwashing tank (capacity 15 litres)

FILLING AND FILTERING

M-PANEL: manual panel on the left side with centralized controls

3 way deviator for tank filling

3” camlock quick hitch for filling from external non-pressurized source

2” camlock quick hitch for filling from external pressurized source

Inspectionable external suction filter

External selfcleaning delivery filter

Double hydraulic agitator through perforated tube and pressure agitators

DEVIOKIT: circuit rinse system even with full tank

Flowback: advanced anti-drip system

Pressurized emptying

PUMP

Comet pump

Flow pump control kit for functional testing

Homocinetic PTO shaft (tractor side yoke 1" 3/8 Z6)

CONTROL GROUP

ISOBUS control unit compliant with ISO standard ISO 11783

Speed sensor on the wheel

Electromagnetic flowmeter

Differential pressure gauge

EASY PACK

30 l wet wall premixer with parallelogram and spray gun

Oil filter

Pressure sensor

Tank level sensor

BOOM SUSPENSION

Parallelogram lifting system

Self-leveling double pendulum frame with jacks, shock absorbers and springs

Anti-yaw system with ADIPOL springs

Hydraulic lifting 1800 mm, double hydropneumatic shock absorber

ALA 400 BOOM

Cataphoresis and powder painted boom

Overlapping sequential opening and closing of the arms, right and left independent

Self-leveling and hydraulic locking

Variable geometry

Rear led lights bar

Trijet without nozzles

OILDRIVE 7 - 1 pair of quick hitches on the tractor needed

ALU PRO BOOM

High-strength aluminum "tri-fold" tubular boom

Sequential opening and closing of the side arms, right and left independent

Self-leveling and hydraulic locking

Variable geometry with suspension

Rear led lights bar

Trijet without nozzles

Rear protective casing

OILDRIVE 7 - 1 pair of quick hitches on the tractor needed

FRAME

Cataphoresis painted frame with stepladder and platform

Square axle 80 mm with adjustable wheelbase and track (min 1650 - max 2250)

Mudguards

Mechanical parking foot

Right side product holders

Rigid drawbar

Towing eye 40 mm

TANK GROUP

Facilitated emptying polyethylene tank

Hinged lid with bayonet joint

Washing circuit system with independent tank (capacity 300 liters)

2 circuit rinse rotating jets

Handwashing tank (capacity 15 litres)

Empty level

FILLING AND FILTERING

M-PANEL: manual panel on the left side with centralized controls

3 way deviator for tank filling

2" camlock quick hitch for filling from external non-pressurized source

Inspectionable external suction filter

External self-cleaning delivery filter

Double hydraulic agitator through perforated tube and pressure agitators

DEVIOKIT: circuit rinse system even with full tank

Flowback: advanced anti-drip system

PUMP

Comet pump

Pump flow control kit for functional testing

PTO shaft (tractor side yoke 1" 3/8 Z6)

CONTROL GROUP

ISOBUS control unit compliant with ISO standard ISO 11783

Speed sensor on the wheel

Flowmeter

Differential pressure gauge

EASY PACK

30 l wet wall premixer with parallelogram and spray gun

Oil filter

Pressure sensor

Tank level sensor

BAR SUSPENSION

Parallelogram lifting system

Self-leveling pendulum frame with jacks, shock absorbers and springs (ALA 500-600)

Self-leveling double pendulum frame with jacks, shock absorbers and springs (ALA 400)

Anti-yaw system with ADIPOL springs (ALA 400)

Hydraulic lifting 1500 mm, double hydropneumatics shock absorber

ALA 400 BOOM

Cataphoresis and powder painted boom

Overlapping sequential opening and closing of the arms, right and left independent

Self-leveling and hydraulic locking

Variable geometry

Rear led lights bar

Trijet without nozzles

OILDRIVE 7 - 1 pair of quick couplings required on the tractor

ALU BOOM

Boom with high-resistance aluminum tubular structure

Sequential opening and closing of the side arms, right and left independent

Self-leveling and hydraulic locking

Variable geometry with suspension

Rear led lights bar

Trijet without nozzles

Rear protective casing

OILDRIVE 7 - 1 pair of quick hitches on the tractor needed
